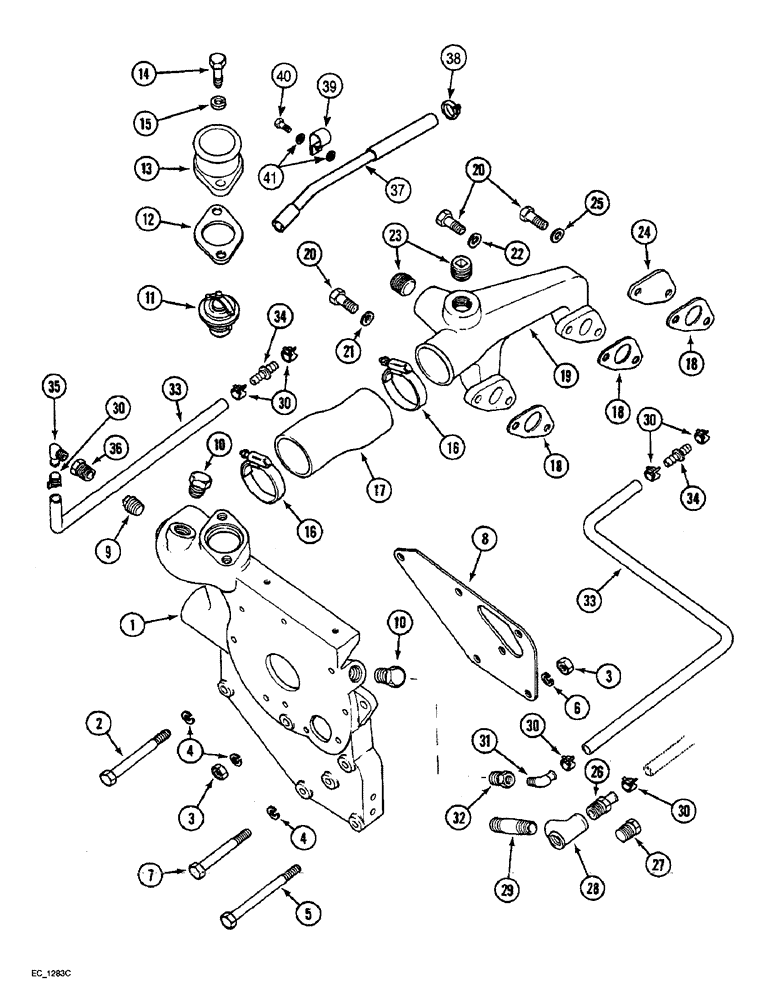

Запчасти Case IH 3230 (2-018) - COOLANT SYSTEM, WATER PUMP CARRIER AND COOLANT MANIFOLD (02) - ENGINE

1

3136678R2

COVER

CARRIER water pump

1шт.

2

26-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 8

hex, 5/16 NC x 3-1/2 inch

3шт.

3

329-105

NUT,5/16"-18, G8

5шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

hex, 5/16 NC x 4 inch

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

1шт.

7

326-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

2шт.

8

3055999R3

GASKET

water pump carrier

1шт.

9

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket, 3/8 inch PT

1шт.

10

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

Pipe, w/o coolant filter Hex Hd, 1/2"-14

2шт.

11

3228046R1

THERMOSTAT

coolant temperature

1шт.

12

3132143R2

GASKET,1mm Thk

water outlet elbow

1шт.

13

3136052R1

ELBOW

water outlet, 3220

1шт.

13

3132142R2

FLANGE

water outlet, 3230

1шт.

14

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

2шт.

17

3144028R2

HOSE

- Connecting 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

18

3055306R3

GASKET,1.5mm Thk

manifold, water collecting

4шт.

19

3218034R1

MANIFOLD

water collecting

1шт.

20

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

3шт.

22

3138687R2

SEALING RING,M8 x 11.5 x 1.5

RING sealing, packing

1шт.

23

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

hex socket, 1/2 inch PT

2шт.

24

3132721R1

COVER

closing, without coolant filter

2шт.

24

3218396R2

FLANGE

COVER closing, with coolant filter

1шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

1502001C1

FITTING

heater hose, air conditioning with coolant filter

1шт.

27

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

Coolant filter w/o air conditioning Hex Hd, 1/2"-14

1шт.

28

144085

TEE,1/2" NPT, Fem

1/2 inch pipe, air conditioning with coolant filter

1шт.

29

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER pipe, 1/2 NPT x 1-1/2 inch

1шт.

30

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

1шт.

31

3125512R1

ELBOW

union, air conditioning without coolant filter

1шт.

32

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 x 3/8 inch, air conditioning without coolant filter

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE heater, 2019 mm, Order 7 x 97252CX, cut to length, Serial Range: -

2шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600 inch, 15240 mm long

1шт.

34

1301342C1

FITTING

ADAPTER straight, special

2шт.

35

3125512R1

ELBOW

union

1шт.

36

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 x 3/8 inch, automotive pipe

1шт.

37

191867A1

PIPE,429, 45 mm Length

TUBE heater, for downswept exhaust

1шт.

38

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

2шт.

39

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

P-type 5/8", Insul, 5/16" Bolt

2шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

41

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
