Запчасти Case IH 3230 (8-044) - DRAFT CONTROL, HYDRAULIC HOUSING (08) - HYDRAULICS

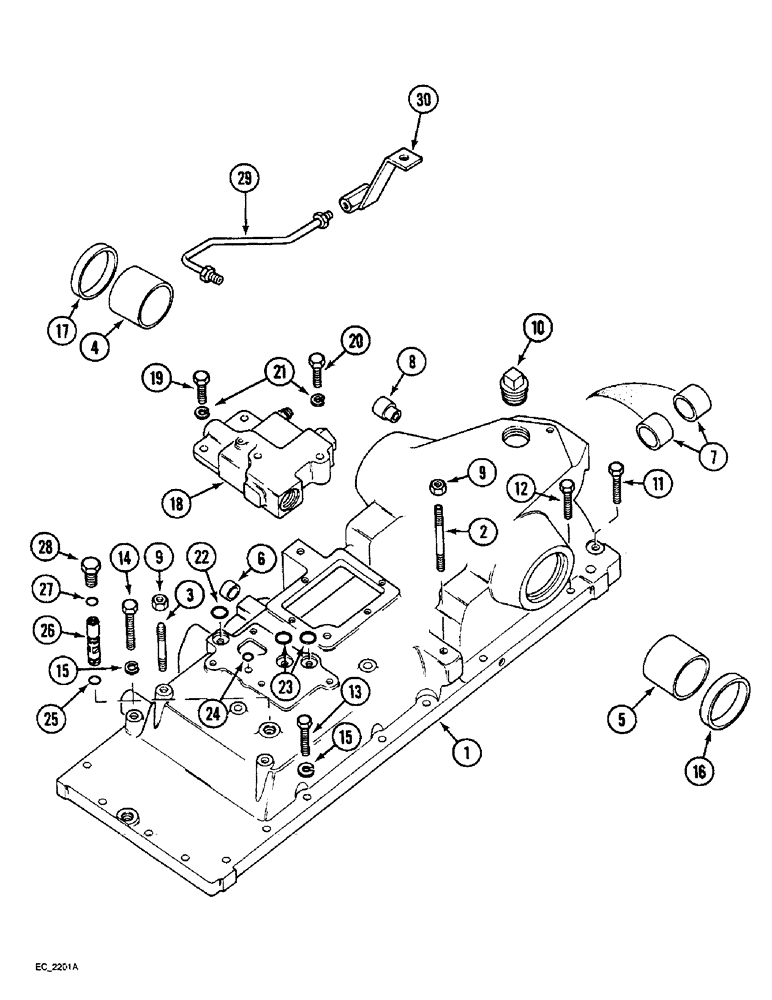

Схема запчастей Case IH 3230 - (8-044) - DRAFT CONTROL, HYDRAULIC HOUSING (08) - HYDRAULICS
3
23
9
26
25
22
7
13
8
21
20
9
19
1
4
2
6
17
10
15
12
18
16
28
11
29
30
27
24
14
5
15

Артикул

Название

Примечание

Количество

1

117573A1

HOUSING ASSY.

HOUSING ASSEMBLY hydraulic unit, with draft control, Includes Ref. 2 - 8

1шт.

2

531143R2

STUD

top cover

2шт.

3

531144R1

STUD

top cover

2шт.

4

1500447C1

BUSHING

rockshaft

1шт.

5

1500532C1

BUSHING

rockshaft

1шт.

6

376011R1

BUSHING

quadrant shaft

1шт.

7

273279R91

BUSHING

BEARING sensing shaft

2шт.

8

399993R1

BUSHING

eccentric shaft

1шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

1537543C1

ADAPTER

PLUG square head, 1-1/4 inch PT, with breather

1шт.

NLBSB1191 shows the breather to be part number 1971726C1, oil fill plug part number is 1537543C1

1шт.

11

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

hex, 1/2 NC x 1-7/8 inch

4шт.

12

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

hex, 1/2 NC x 1-5/8 inch

2шт.

13

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex, 3/8 NC x 1-7/8 inch

11шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

16

A58223

OIL SEAL

oil rockshaft, left

1шт.

17

380770R91

OIL SEAL

SEAL oil rockshaft

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY unloading, See figure 8-052

1шт.

19

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex, 3/8 NC x 1-3/8 inch

2шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

2шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

23

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

24

59099C1

O-RING,2.39mm Thk x 6.6mm ID

sealing

1шт.

25

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

26

400095R92

VALVE, CUSHION

VALVE ASSEMBLY safety

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

536855R1

PLUG

hex, 3/4 inch NF

1шт.

29

1537329C1

PIPE

TUBE ASSEMBLY brake bleed

1шт.

30

1537326C1

SUPPORT

BRACKET ASSEMBLY bleed tube

1шт.
