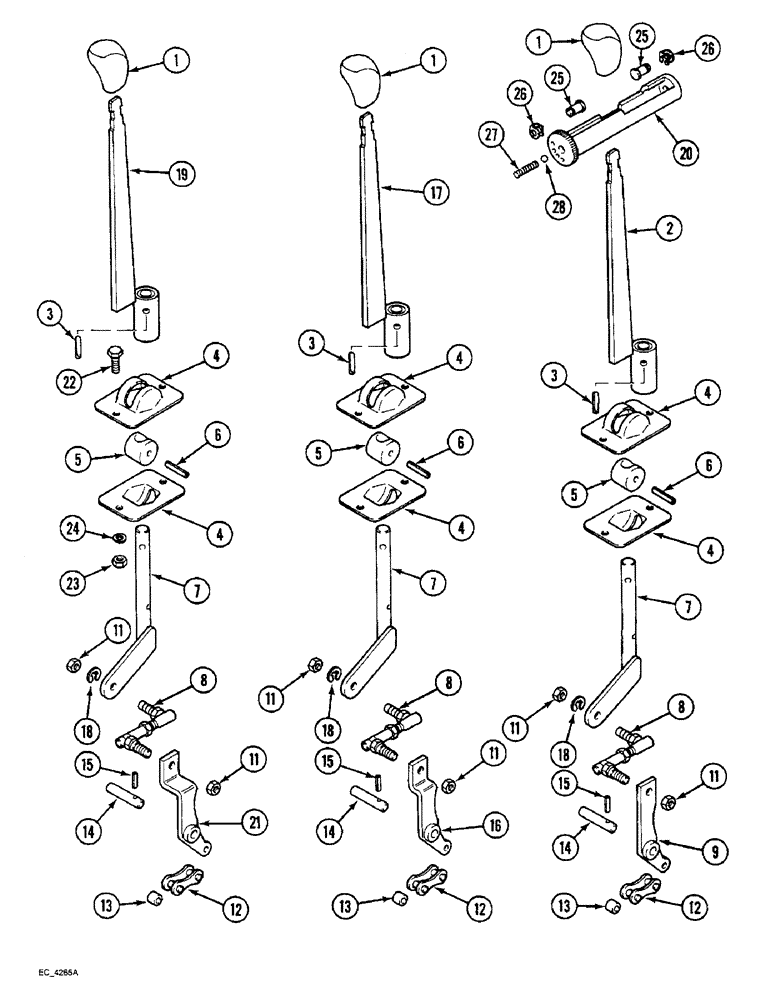

Запчасти Case IH 3230 (8-040) - REMOTE AUXILIARY VALVE CONTROL, 1ST, 2ND AND 3RD BANK WITH CAB (08) - HYDRAULICS
1
27
5
8
11
25
3
1
24
15
26
7
3
7
21
19
6
14
18
13
4
16
8
12
12
5
11
4
3
9
1
4
7
5
11
12
11
4
2
23
26
13
15
14
6
11
28
20
17
4
25
6
11
14
18
13
15
4
22
18
8
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
12
241-1315
LINK, CONNECTING
LINK connecting, single pitch, No. 50, 5/8 inch pitch
1шт.
13
94274C1
NYLON BEARING,5.15mm ID x 8.04mm OD x 8mm L
BEARING auxiliary valve spool link
1шт.
22
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
hex, full threads, 6 x 20 mm, class 8
1шт.
