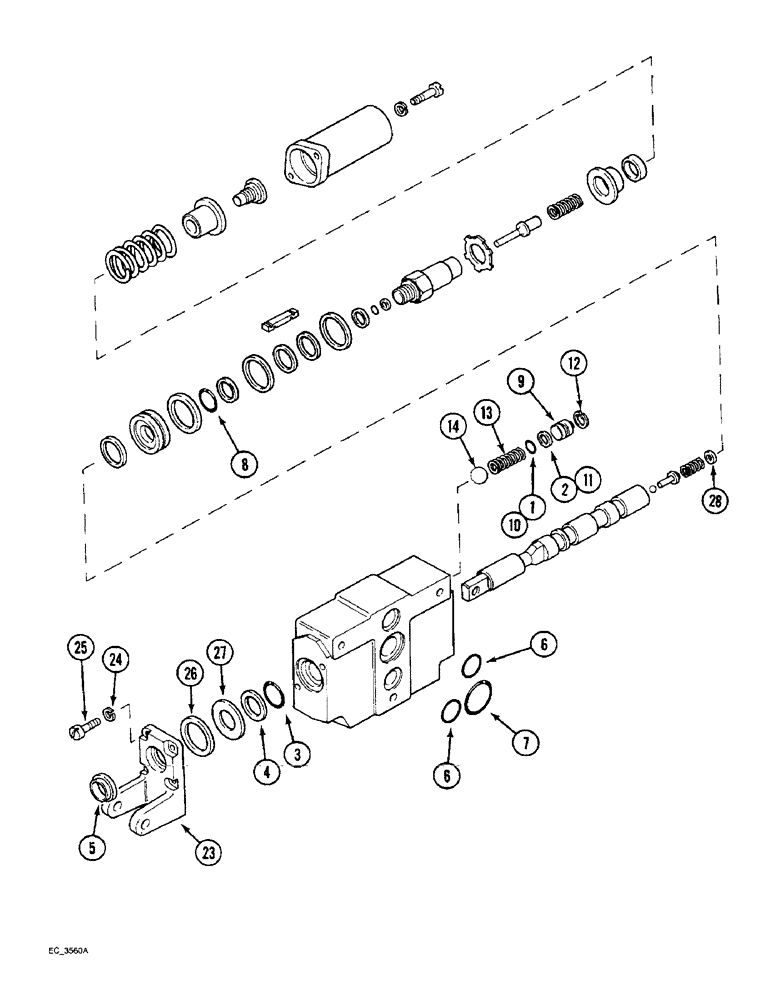

Запчасти Case IH 3230 (8-034) - REMOTE AUXILIARY VALVE ASSEMBLY, WITHOUT CHECK VALVE (08) - HYDRAULICS

1287379C91

VALVE

ASSEMBLY double acting, without check valve, Includes Ref. 1 - 14

1шт.

1328394C1

SEAL KIT

KIT service, Includes Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING, 11 ID x 2 mm wide

2шт.

2

NSS

NOT SOLD SEPARAT

RING back up

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 18 ID x 3 mm wide

1шт.

4

NSS

NOT SOLD SEPARAT

RING back up

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 x 2.5 mm

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 x 2.5 mm

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL flat

1шт.

1958016C1

REPAIR KIT

KIT service, Includes Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING, 11 ID x 2 mm wide

1шт.

11

NSS

NOT SOLD SEPARAT

RING back up

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING compression

1шт.

14

NSS

NOT SOLD SEPARAT

BALL check valve

1шт.

23

1958026C2

SUPPORT

BRACKET auxiliary valve, Order also 1958025C1

1шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

25

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess Hex Soc Hd, M6 x 12, 8.8

1шт.

25

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8

1шт.

26

122964A1

WASHER

main spool

1шт.

27

122963A1

BACK-UP RING

DISC support

1шт.

28

1328389C1

SHIM

0.3 mm thick

1шт.

28

1328390C1

SHIM

0.4 mm thick

1шт.

28

1328388C1

SHIM

0.5 mm thick

1шт.

28

1328391C1

SHIM KIT

SHIM, 0.8 mm thick

1шт.

511-1040

BALL,4mm Dia

steel, 4 mm, follow down parts shown from Ref. 28, shim, spring, and poppet

1шт.
