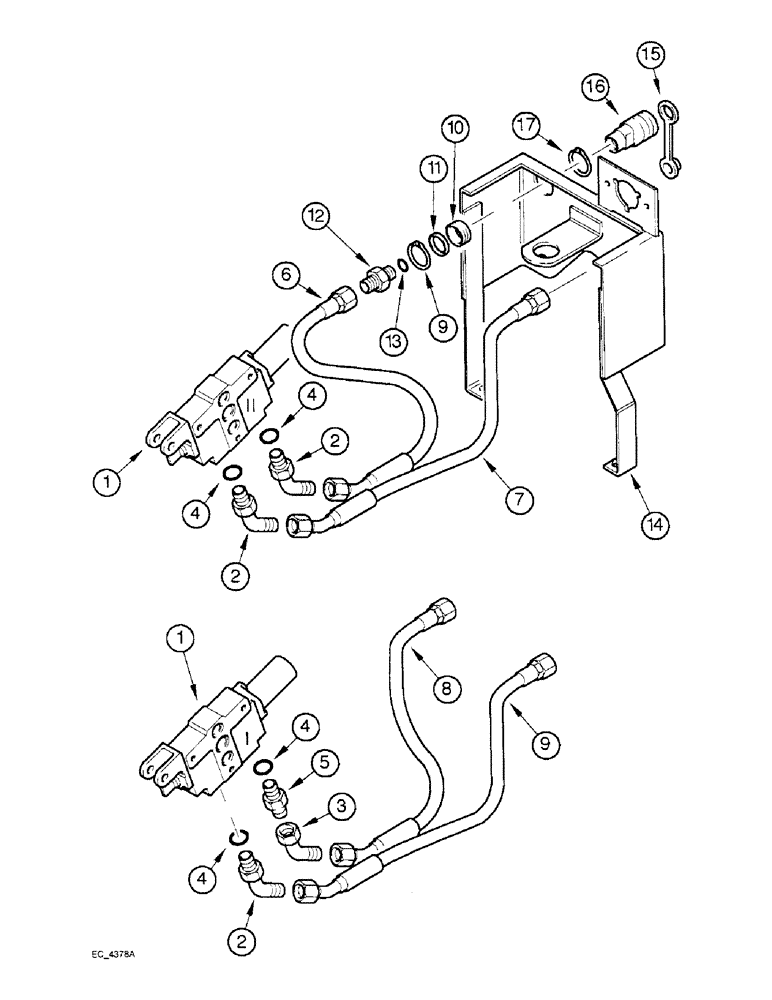

Запчасти Case IH 3230 (8-032) - REMOTE AUXILIARY VALVES, 1ST, 2ND AND 3RD BANK TUBES AND COUPLINGS WITH CAB (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, without check valve, used for 1st, 2nd or 3rd bank position, See figure 8-034

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, with one check valve, used for 1st, 2nd 3rd bank position, See figure 8-036

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, with 2 check valves

1шт.

2

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 1.5

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

86165C1

FITTING

UNION straight

1шт.

6

177187A1

HOSE

ASSEMBLY remote valves to coupling, 3rd bank right

1шт.

6

177185A1

HOSE

ASSEMBLY remote valves to coupling, 2nd bank right

1шт.

7

177186A1

HOSE

ASSEMBLY remote valves to coupling, 3rd bank left

1шт.

7

177184A1

HOSE

ASSEMBLY remote valves to coupling, 2nd bank left

1шт.

8

177183A1

HOSE

ASSEMBLY remote valves to coupling, 1st bank right

1шт.

9

177182A1

HOSE

ASSEMBLY remote valves to coupling, 1st bank left

1шт.

10

A139805

RETAINER

coupling, breakaway

1шт.

11

178400A1

SPACER

coupling, breakaway

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss, breakaway coupling

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Breakaway coupling

1шт.

14

125845A1

SUPPORT ASSY.

SUPPORT couplings, breakaway

1шт.

128362A1

DECAL

auxiliary couplings, ports 1, 2, 3, not shown, breakaway

1шт.

15

A137135

PLUG

dust protective, breakaway coupling

1шт.

16

A177478

COUPLING, QUICK, FEM

COUPLING female, breakaway, coupling

1шт.

17

104-11150

SNAP RING,#150, 1.408", Ext

RING snap, breakaway coupling

1шт.
