(8-028) - REMOTE AUXILIARY VALVES, 1ST AND 2ND BANK TUBES AND COUPLINGS (WITHOUT CAB)

Запчасти Case IH 3230 (8-028) - REMOTE AUXILIARY VALVES, 1ST AND 2ND BANK TUBES AND COUPLINGS (WITHOUT CAB) (08) - HYDRAULICS

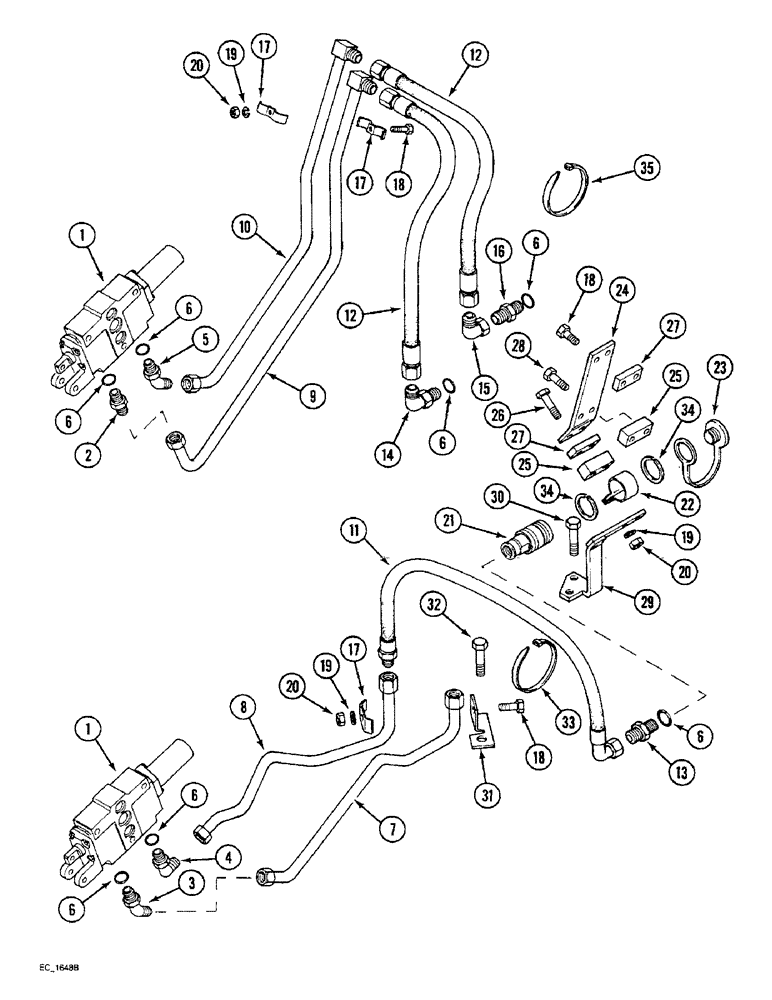

Схема запчастей Case IH 3230 - (8-028) - REMOTE AUXILIARY VALVES, 1ST AND 2ND BANK TUBES AND COUPLINGS (WITHOUT CAB) (08) - HYDRAULICS
20
6
8
19
7
6
33
1
29
2
15
18
17
19
27
17
10
23
3
12
9
27
31
28
6
6
35
18
6
20
1
24
34
22
18
25
21
17
30
16
14
5
13
11
6
4
25
26
20
19
6
34
12
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, without check valve, used for 1st or 2nd bank position, See figure 8-034

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, with one check valve, used for 1st or 2nd bank position, See figure 8-036

1шт.

2

86165C1

FITTING

UNION straight

1шт.

3

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 1.5, 1st bank

1шт.

4

86703C1

ELBOW

90 degree, 7/8 inch NF flare x 22 mm - 1.5, 1st bank

1шт.

5

93636C1

ELBOW

45 degree, 7/8 inch NF flare x 22 mm - 1.5, 2nd bank

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

99649C1

TUBE ASSY.

TUBE ASSEMBLY lower, 1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

TUBE ASSEMBLY raise, 1st bank rear outlet

1шт.

9

1536573C1

HYD TUBE,0.625" OD, 595, 340 mm Length

TUBE ASSEMBLY raise, 2nd bank front outlet

1шт.

10

1536572C1

HYD TUBE,0.625" OD, 386, 510 mm Length

TUBE ASSEMBLY lower, 2nd bank rear outlet

1шт.

11

128857A1

HOSE,12.7mm ID x 689mm L

ASSEMBLY 1st bank, outlet, Serial Range: tube-coupling

2шт.

12

128860A1

HOSE

ASSEMBLY 2nd bank, outlet, Serial Range: tube-coupling

2шт.

13

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, 1st bank 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj o-ring boss, 2nd bank

1шт.

15

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel, 2nd bank

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss, 2nd bank

2шт.

17

535301R1

CLAMP

tube, rear outlet tube

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

21

A177478

COUPLING, QUICK, FEM

COUPLING female, breakaway

1шт.

22

3114106R2

CLAMP,38.1mm

coupling

1шт.

23

373220R1

PLUG

dust, breakaway coupling

1шт.

24

3129558R1

PLATE

coupling, 2nd bank

1шт.

25

3129557R1

SPACER

coupling, 2nd bank

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch, 2 bank

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, 1st bank

2шт.

27

1500503C1

SPACER

coupling, 2nd bank

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, 2nd bank

2шт.

29

535298R1

SUPPORT

BRACKET ASSEMBLY mounting, rear manifold, 1st bank

1шт.

30

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1st bank Hex, 1/2"-13 x 2 1/4", G5

2шт.

31

535300R1

BRACKET

rear outlet tubes, 1st bank

1шт.

32

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1st bank Hex, 1/2"-13 x 2", G5

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP tie, cable, 4.0 inch max bundle, 1st bank

1шт.

34

104-11150

SNAP RING,#150, 1.408", Ext

RING snap, retaining

1шт.

35

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP tie, 8 inch long, 2nd bank

1шт.
