Запчасти Case IH 3230 (8-026) - REMOTE AUXILIARY VALVES, 1ST, 2ND, OR 3RD BANK MOUNTING (WITH CAB) (08) - HYDRAULICS

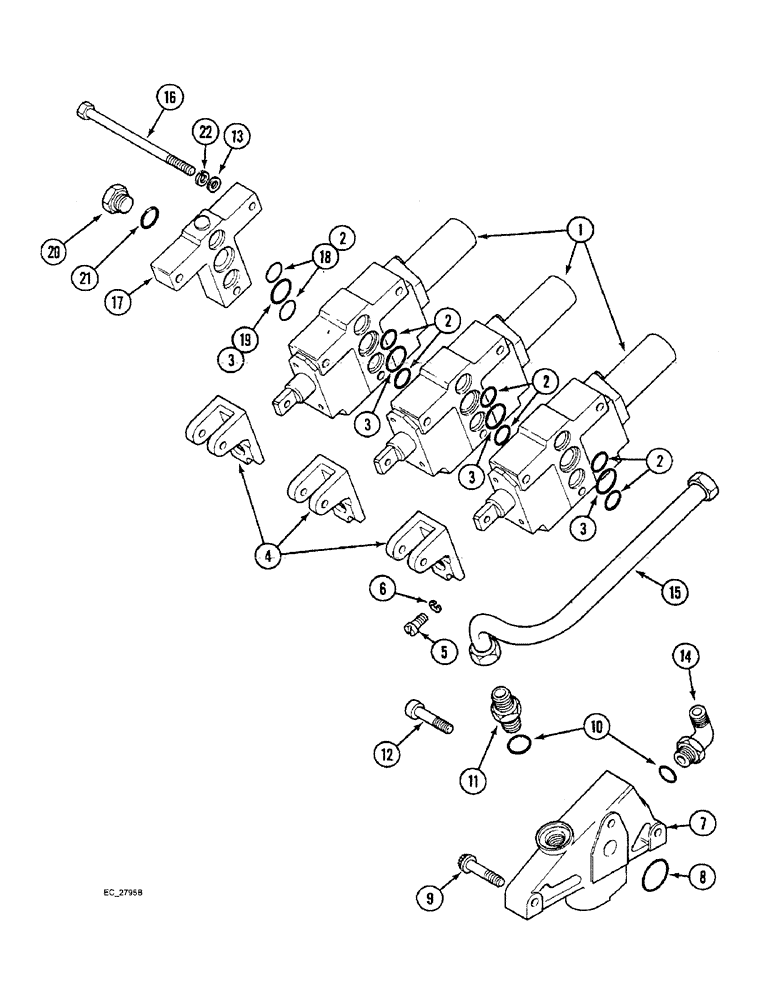

Схема запчастей Case IH 3230 - (8-026) - REMOTE AUXILIARY VALVES, 1ST, 2ND, OR 3RD BANK MOUNTING (WITH CAB) (08) - HYDRAULICS
2
15
14
22
3
18
21
20
11
19
3
2
3
3
9
4
12
16
8
17
6
1
2
7
10
5
13
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, without check valve, used for 1st, 2nd, or 3rd bank position, See figure 8-034

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY double acting, with one check valve, used for 1st, 2nd, or 3rd bank position, See figure 8-036, Includes Ref. 2 and 3

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 x 2.5 mm

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 x 2.5 mm

1шт.

4

1958026C2

SUPPORT

BRACKET auxiliary valve

1шт.

5

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

For Support Holes With Recess Hex Soc Hd, M6 x 12, 8.8

1шт.

5

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , For Support Holes Without Recess Hex Soc Hd, M6 x 16, 8.8

1шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

7

94070C1

PLATE

BLOCK control valve transfer, power beyond is already built in, Bosch

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

9

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 NC x 1-3/4 inch, grade 8

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x o-ring boss

1шт.

12

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT hex socket, 3/8 NC x 1-3/4 inch

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

3шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj o-ring boss

1шт.

15

99530C1

PIPE ASSY.

TUBE ASSEMBLY auxiliary valve return

1шт.

16

815-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

hex, 8 - 1.25 x 80 mm, 1 valve fit

3шт.

16

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

hex, 8 - 1.25 x 120 mm, 2 valve fit

3шт.

16

815-8160

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

hex, 8 - 1.25 x 160 mm, 3 valve fit

3шт.

1971164C1

COVER ASSY

COVER ASSEMBLY end, Includes Ref. 17 - 21

1шт.

17

1971165C1

COVER

end

1шт.

89464C92

COVER

valve end, Includes Ref. 18 and 19

1шт.

18

1328382C1

O-RING,2.5mm Thk x 18mm ID

18 x 2.5 mm

2шт.

19

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 x 2.5 mm

1шт.

20

1971184C1

PLUG

end cover

1шт.

21

1971185C1

O-RING,13.3mm ID x 2.4mm Width

13.3 ID x 2.4 mm wide

1шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.
