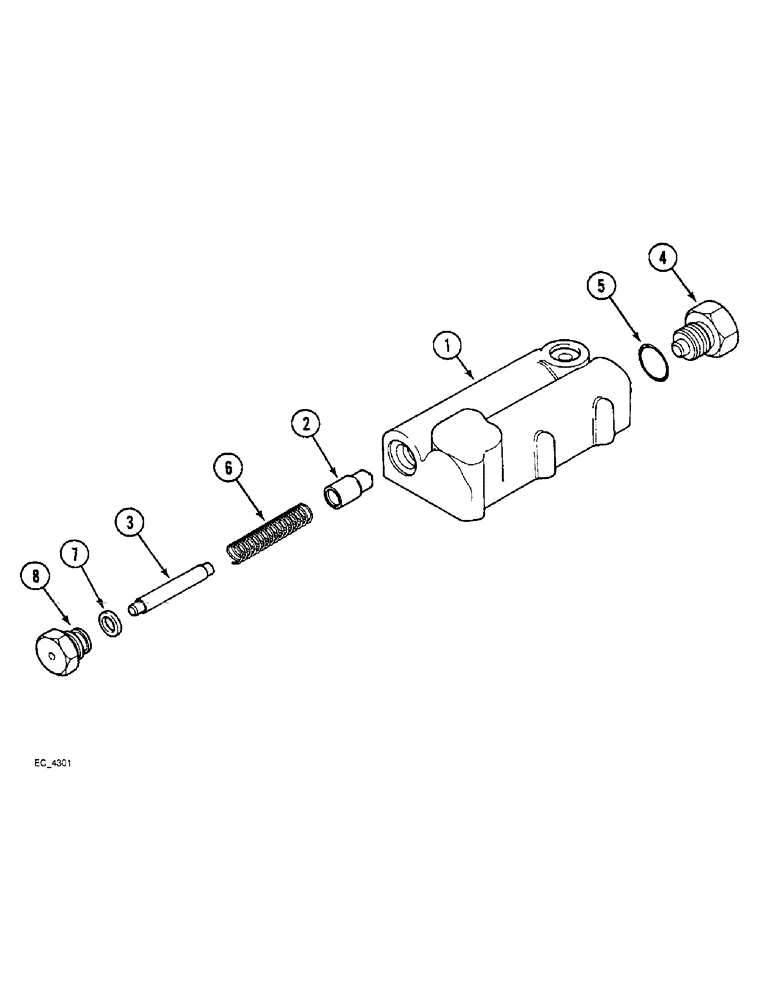

Запчасти Case IH 3230 (8-022) - REGULATOR VALVE ASSEMBLY, FORWARD AND REVERSE (08) - HYDRAULICS

110312A2

VALVE

regulator, forward and reverse, Includes Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY regulator valve, Order valve assembly 110312A2

1шт.

2

399882R1

POPPET

poppet

1шт.

3

399881R2

PIN

pressure regulator valve

1шт.

4

86398C2

PLUG

pressure regulator valve

1шт.

6

88426C1

SPRING

pressure regulator valve

1шт.

7

275288A1

SHIM

1шт.

8

1954070C1

PLUG

regulator valve

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
