Запчасти Case IH 3230 (8-020) - REGULATOR VALVE ASSEMBLY, 2 SPEED POWER SHIFT (08) - HYDRAULICS

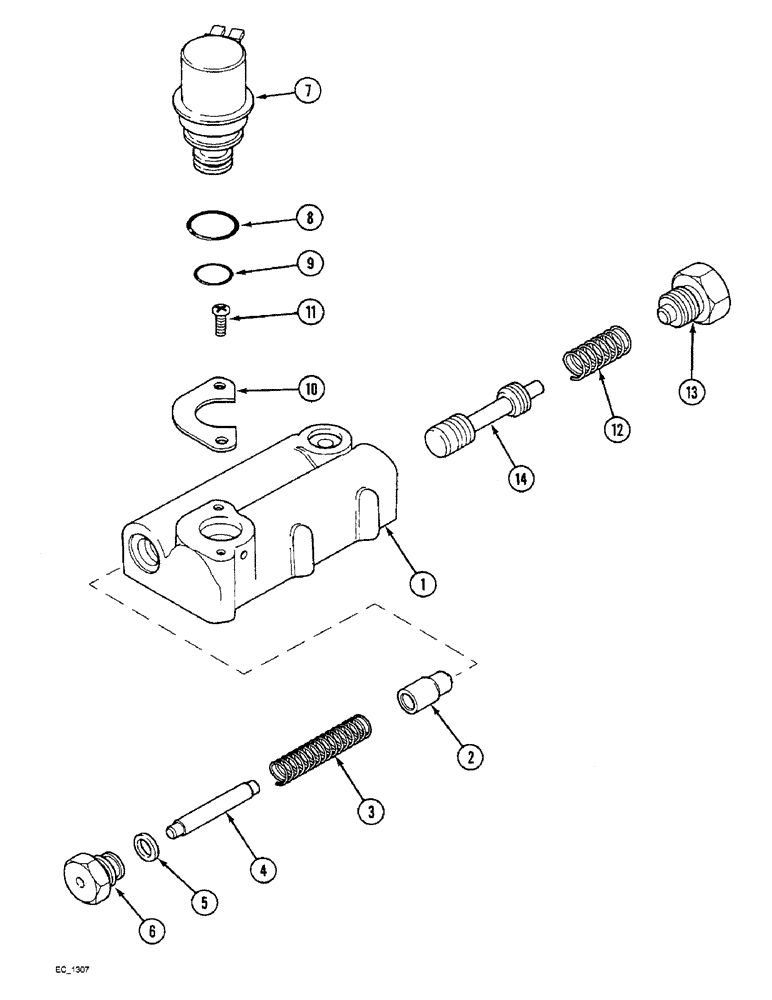

Схема запчастей Case IH 3230 - (8-020) - REGULATOR VALVE ASSEMBLY, 2 SPEED POWER SHIFT (08) - HYDRAULICS
8
14
9
2
10
6
5
1
4
13
11
3
7
12

Артикул

Название

Примечание

Количество

110313A3

PILOT VALVE

VALVE regulator, power shift, Includes Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY regulator valve, Order valve assembly 110313A3

1шт.

2

399882R1

POPPET

poppet

1шт.

3

88426C1

SPRING

pressure regulator valve

1шт.

4

399881R2

PIN

pressure regulator valve

1шт.

5

275288A1

SHIM

1шт.

6

1954070C1

PLUG

regulator valve

1шт.

7

1958120C1

SOLENOID VALVE

VALVE solenoid, Includes Ref. 8 and 9

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

9

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

10

1289695C1

COLLAR

CLAMP solenoid valve

1шт.

11

940-148

SCREW,Pan Cross Recess, M4 x 8mm, Cl 4.8

pan head cross recessed, 4 x 8 mm

2шт.

12

1289693C3

SPRING

compression

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG regulator valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL regulator valve, Order valve assembly 110313A3

1шт.

Выбрано товаров: 15
