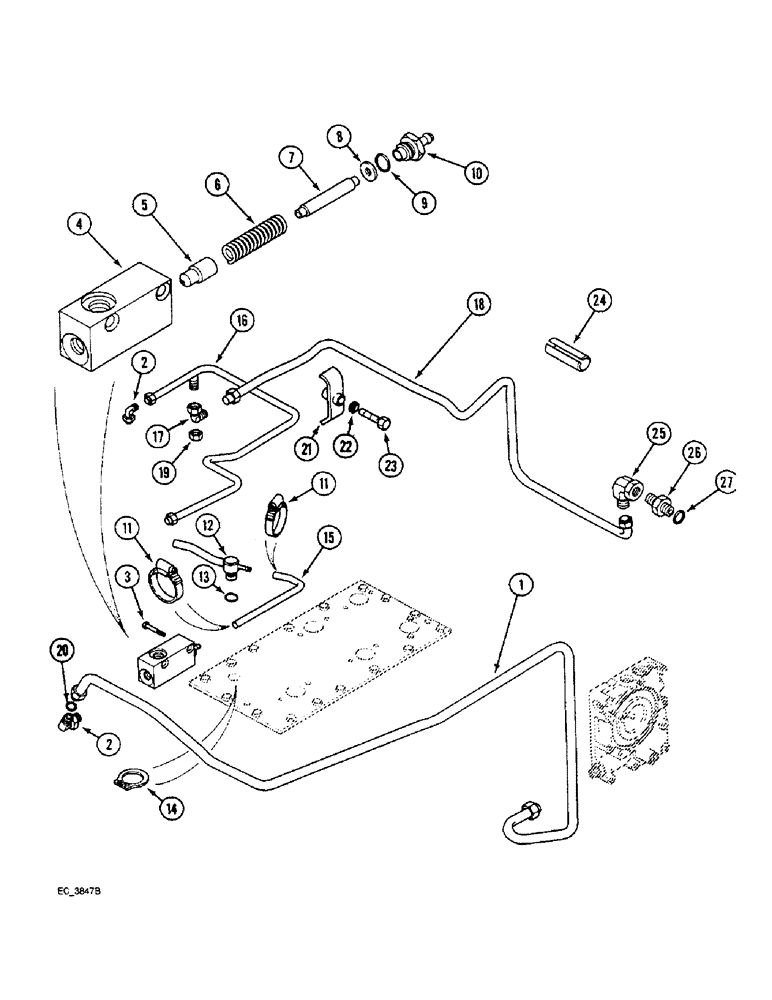

Запчасти Case IH 3230 (8-018) - REGULATOR VALVE AND CONNECTIONS-CREEP, WITH CAB (08) - HYDRAULICS

1

1343342C1

HYD TUBE,0.5" OD, 573, 339 mm Length

TUBE ASSEMBLY return

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj o-ring boss

2шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

1343334C2

VALVE

regulator, Includes Ref. 4 - 10

1шт.

4

1343333C1

VALVE BODY

BODY ASSEMBLY regulator valve

1шт.

5

399882R1

POPPET

poppet, pressure regulator

1шт.

6

88426C1

SPRING

pressure regulator valve

1шт.

7

399881R2

PIN

pressure regulator valve

1шт.

8

275288A1

SHIM

spring retainer

1шт.

10

1343336C1

PLUG

regulator valve

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

12

1343348C1

PIPE

TUBE ASSEMBLY break dump

1шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

14

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE valve bleed 250 mm, Order 427683C1 and, Serial Range: cut-length

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 1/4 inch ID x 1 foot

1шт.

16

1343343C1

PIPE,0.5" OD, 450, 338 mm Length

TUBE ASSEMBLY return

1шт.

17

99706C1

ELBOW

90 degree swivel

1шт.

18

127350A1

HYD TUBE

TUBE ASSEMBLY drop box

1шт.

18

123242A1

HYD TUBE

TUBE ASSEMBLY drop box, without creeper

1шт.

19

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch, with 2 wheel drive

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

21

1537414C1

SHIN

CLAMP tube

1шт.

22

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE rubber 2-1/2 inch, Order 87086C1 and, Serial Range: cut-length

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

25

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

90 degree

1шт.

26

123627A1

FITTING

CONNECTOR, Serial Range: elbow-dropbox

1шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

13/32 ID x 5/64 inch

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
