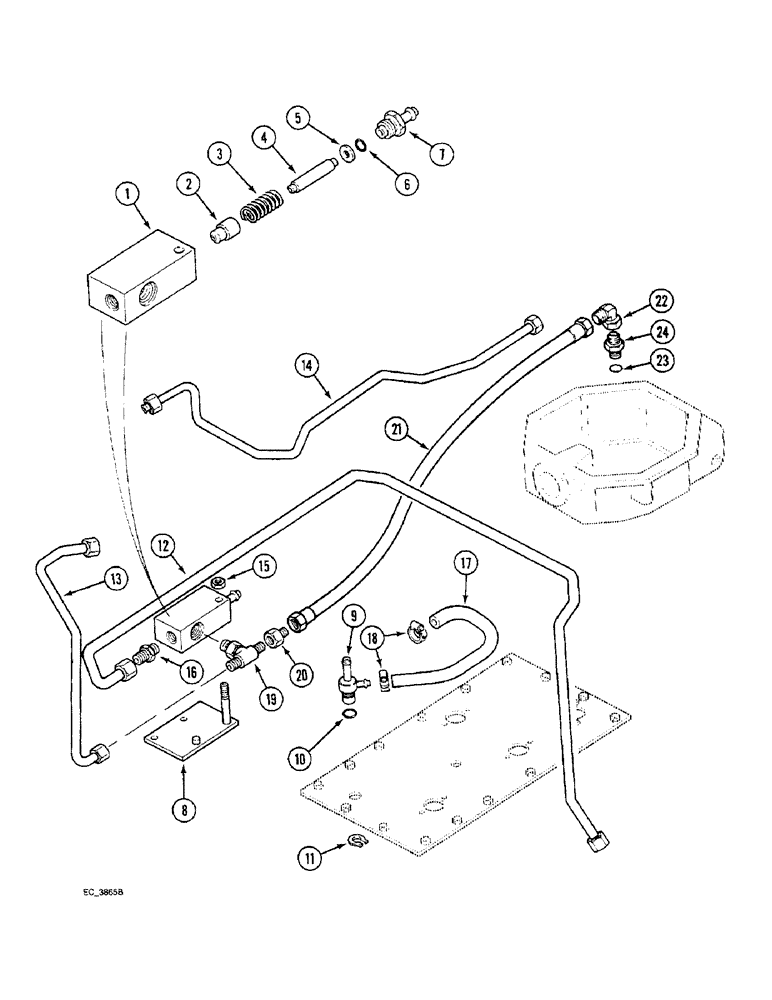

Запчасти Case IH 3230 (8-016) - REGULATOR VALVE AND CONNECTIONS-CREEP, WITHOUT CAB (08) - HYDRAULICS

1343334C1

VALVE

ASSEMBLY regulator, Includes Ref. 1 - 7

1шт.

1

1343333C1

VALVE BODY

BODY ASSEMBLY regulator valve

1шт.

2

399882R1

POPPET

poppet

1шт.

3

88426C1

SPRING

pressure regulator valve

1шт.

4

399881R2

PIN

pressure regulator valve

1шт.

5

275288A1

SHIM

1шт.

7

1343336C1

PLUG

regulator valve

1шт.

8

1343335C1

LARGE PLATE

PLATE ASSEMBLY valve mounting

1шт.

9

1343344C1

PIPE

TUBE ASSEMBLY brake dump

1шт.

10

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

11

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

12

1343337C1

HYD TUBE,0.5" OD, 473, 398 mm Length

TUBE ASSEMBLY power steering return

1шт.

13

1343339C2

PIPE,0.5" OD, 401, 68 mm Length

TUBE ASSEMBLY power steering return

1шт.

14

127283A1

HYD TUBE

TUBE ASSEMBLY oil cooler return, rear

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

1шт.

17

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 1/4 inch ID x 1 foot

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

19

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4-16 inch adj o-ring branch x flare x flare

1шт.

20

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER reducing, 1/2 tube OD x 9/16-18 inch flare

1шт.

21

124612A2

HYDRAULIC HOSE

HOSE ASSEMBLY drop box

1шт.

22

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

90 degree

1шт.

23

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

13/32 ID x 5/64 inch

1шт.

24

123627A1

FITTING

CONNECTOR, Serial Range: elbow-dropbox

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
