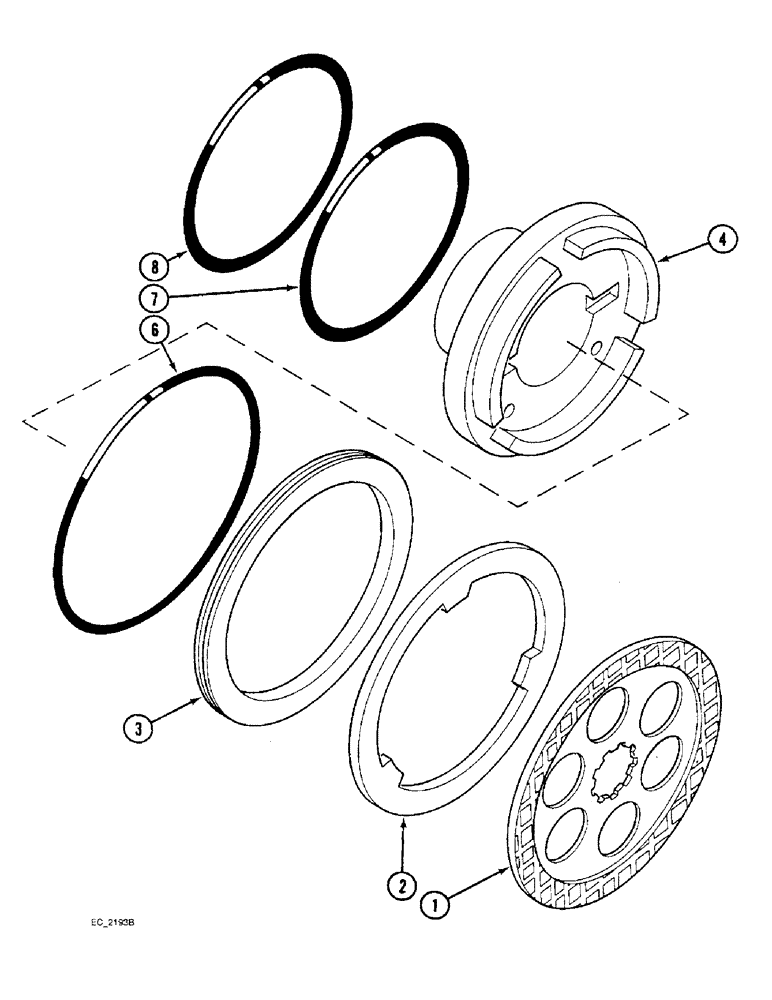

Запчасти Case IH 3230 (7-012) - DIFFERENTIAL BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC brake center

2шт.

2

399736R3

RING

brake, assemble with numbered face inboard

2шт.

3

114621C1

PISTON

brake, Serial Range: -JJE0908036

2шт.

3

193373A1

PISTON

brake, Start Serial: JJE0908037

2шт.

4

399770R2

BEARING CARRIER

CARRIER differential bearing, right, See figure 6-048

1шт.

4

399769R2

BEARING CARRIER

CARRIER differential bearing, left, See figure 6-048

1шт.

6

238-6274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

, Serial Range: -JJE0908036

2шт.

Part of service kit P/N 539535R91

1шт.

6

191299A1

O-RING,260mm ID x 3.5mm Width

10 ID x 1/8, class 6, Start Serial: JJE0908037

2шт.

7

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

Part of service kit P/N 539535R91

1шт.

8

238-5367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 ID x 3/16 inch, class 6

2шт.

Part of service kit P/N 539535R91

1шт.

539535R91

O-RING KIT

service, o-rings, Includes Ref. 6, 7 and 8, Serial Range: -JJE0908036

1шт.

6

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

Optional heavy duty O-rings for abnormal brake usage -274, Cl 8, 9.984" ID x .139" Thk, Serial Range: -JJE0908036

2шт.

6

191300A1

O-RING,3.5mm Thk x 260mm ID, Cl 8

10 ID x 1/8 inch, class 8, optional heavy duty o-rings for abnormal brake usage, Start Serial: JJE0908037

2шт.

7

238-8267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

Optional heavy duty O-rings for abnormal brake usage -267, Cl 8, 8.234" ID x .139" Thk

2шт.
