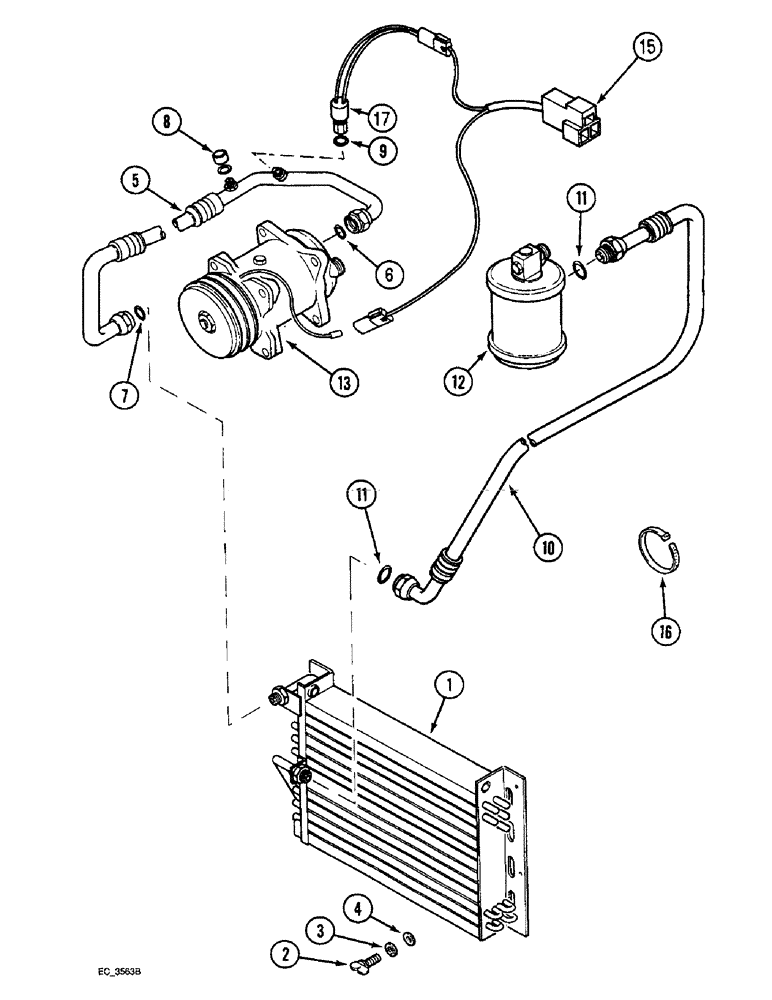

Запчасти Case IH 3230 (2-012) - AIR CONDITIONING, CONDENSER AND CONNECTIONS (02) - ENGINE

1

136909A2

CONDENSER

ASSEMBLY air conditioning

1шт.

2

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

thumb, 5/16 inch NC, Serial Range: -JJE0910719

4шт.

2

905855R1

SCREW,Wing, M8 x 12mm

BOLT wing, 8 x 12 mm, Start Serial: JJE0910720

4шт.

3

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, Serial Range: -JJE0910719

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Serial Range: -JJE0910719

4шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, Start Serial: JJE0910720

4шт.

5

134091A2

HOSE

compressor to condenser, Includes Ref. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 mm ID

1шт.

8

122554A1

CAP

sealing, 7/16-20 inch female 45 deg flare

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 mm ID

1шт.

10

134094A1

HOSE

condenser to receiver, Includes Ref. 11

1шт.

11

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 mm ID

2шт.

12

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER air conditioning, See figure 2-006

1шт.

13

REF

INSTRUCTION

COMPRESSOR ASSEMBLY air conditioning, See figure 2-014

1шт.

15

140592A2

HARNESS

air conditioning, front

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP tie, 7 inch

1шт.

17

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE

1шт.
