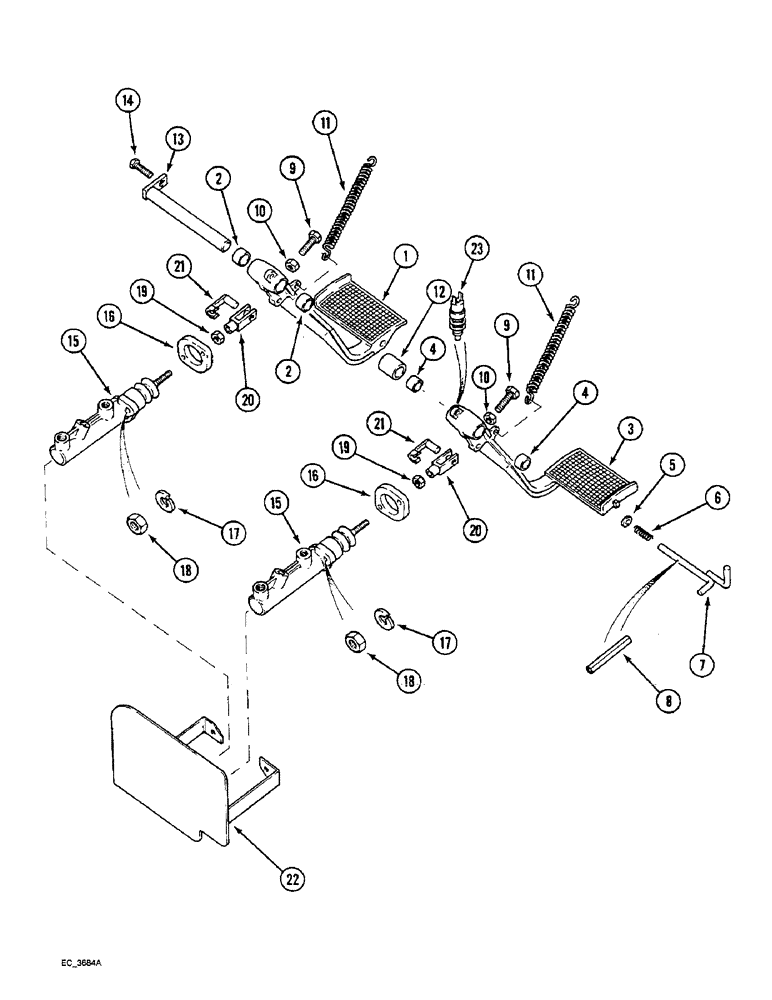

Запчасти Case IH 3230 (7-006) - BRAKE PEDALS, TRACTOR WITH CAB (07) - BRAKES

1

3232965R93

PEDAL ASSY.

PEDAL brake, right, Includes Ref. 2

1шт.

2

3226548R1

BUSHING

pedal

2шт.

3

3232966R93

PEDAL ASSY.

PEDAL brake, left, Includes Ref. 4

1шт.

4

3226548R1

BUSHING

pedal

2шт.

5

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

flat

1шт.

6

3232969R1

SPRING

compression

1шт.

7

3232964R1

LATCH ASSY.

LATCH pedal

1шт.

8

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 25 mm

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

2783696R1

SPRING

tension

2шт.

12

3232968R1

SPACER

pedal support

1шт.

13

3232962R1

PIVOT PIN,20mm OD x 170mm L

ROD pedal support

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY brake master, See figure 7-010

2шт.

16

3129655R1

SPACER

master cylinder

2шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

4шт.

19

825-1410

NUT,M10, Cl 8

2шт.

20

713-2110

CLEVIS

adjusting

2шт.

21

3232963R1

PIN

clevis, 10 x 20 mm

2шт.

22

1536492C1

GUARD

BAFFLE heat shield, Serial Range: -JJE0922289

1шт.

22

231449A1

GUARD

SHIELD heat, brake cylinders, Start Serial: JJE0922290

1шт.

23

115206A1

LIMIT SWITCH

SWITCH

1шт.
