Запчасти Case IH 3230 (2-010) - AIR CONDITIONING, COMPRESSOR AND CONNECTIONS (02) - ENGINE

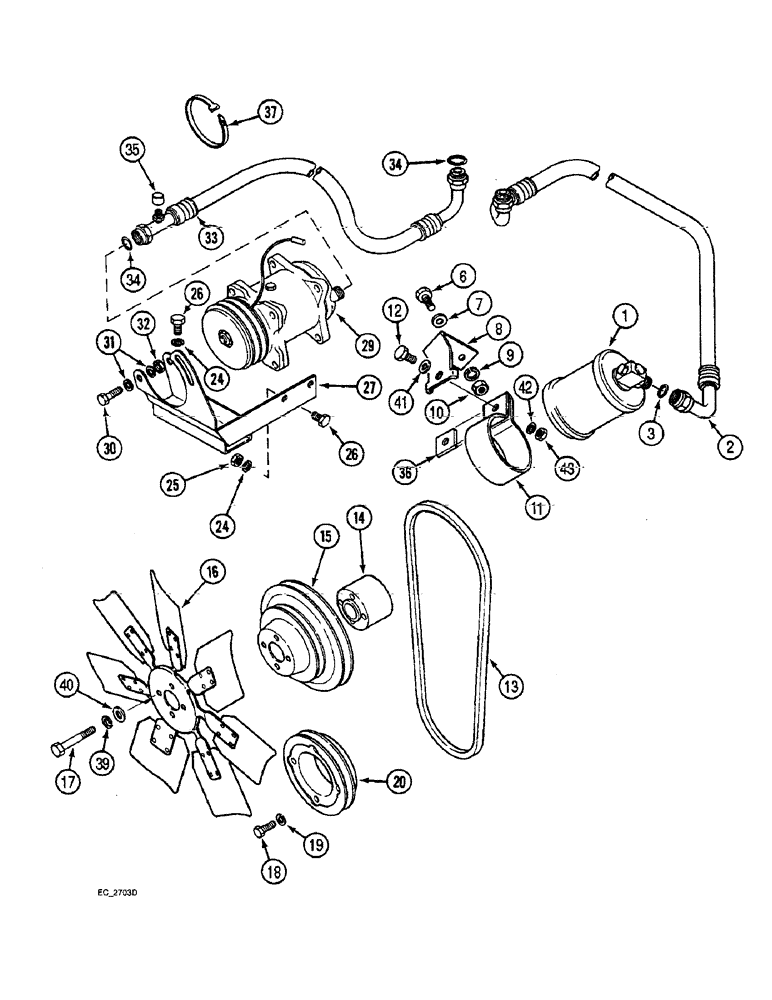

Схема запчастей Case IH 3230 - (2-010) - AIR CONDITIONING, COMPRESSOR AND CONNECTIONS (02) - ENGINE
2
9
1
39
7
11
31
35
32
34
12
17
18
26
37
14
43
6
13
8
36
29
27
42
10
15
30
19
3
40
41
25
20
34
24
33
26
16
24

Артикул

Название

Примечание

Количество

1

1990758C2

RECEIVER-DRYER

RECEIVE-DRIER air conditioning

1шт.

2

134093A1

HOSE

, Serial Range: receiver-cab

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 mm ID

1шт.

6

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, full threads, 6 x 20 mm, class 8

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

134072A2

SUPPORT

receiver

1шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

11

T102980

CLAMP

BRACKET receiver-dryer

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

13

84657C1

V-BELT,0.50" W x 67.00" L

V-BELT, , Freon Compressor 0.50" W x 67.00" L

1шт.

14

137276A1

SPACER

pulley, Serial Range: -JJE0910719

1шт.

14

181750A1

SPACER

pulley, Start Serial: JJE0910720

1шт.

15

84624C1

PULLEY

water pump, 2 groove

1шт.

16

136844A1

FAN

engine cooling

1шт.

17

414-456

BOLT,Hex, 1/4" - 28 x 3-1/2", Gr 5

hex, 1/4 NF x 3-1/2 inch, Serial Range: -JJE0910719

4шт.

17

414-444

BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5

hex, 1/4 NF x 2-3/4 inch, Start Serial: JJE0910720

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

84623C1

PULLEY

crankshaft

1шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

27

84485C2

SUPPORT

BRACKET Freon compressor

1шт.

29

REF

INSTRUCTION

COMPRESSOR ASSEMBLY air conditioning, See figure 2-014

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

31

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

6шт.

32

329-106

NUT,3/8"-16, G8

3шт.

33

134092A1

HOSE

cab base to compressor, Includes Ref. 34 and 35

1шт.

34

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

1шт.

35

122553A1

CAP

sealing

1шт.

36

T103390

WASHER

spacer

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

40

496-11028

WASHER,9/32" x 5/8" x .065, HDN

flat, hardened, 9/32 x 5/8 x 1/16 inch

4шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

42

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

hex, 8 mm - 1.25, class 10

1шт.

Выбрано товаров: 38
