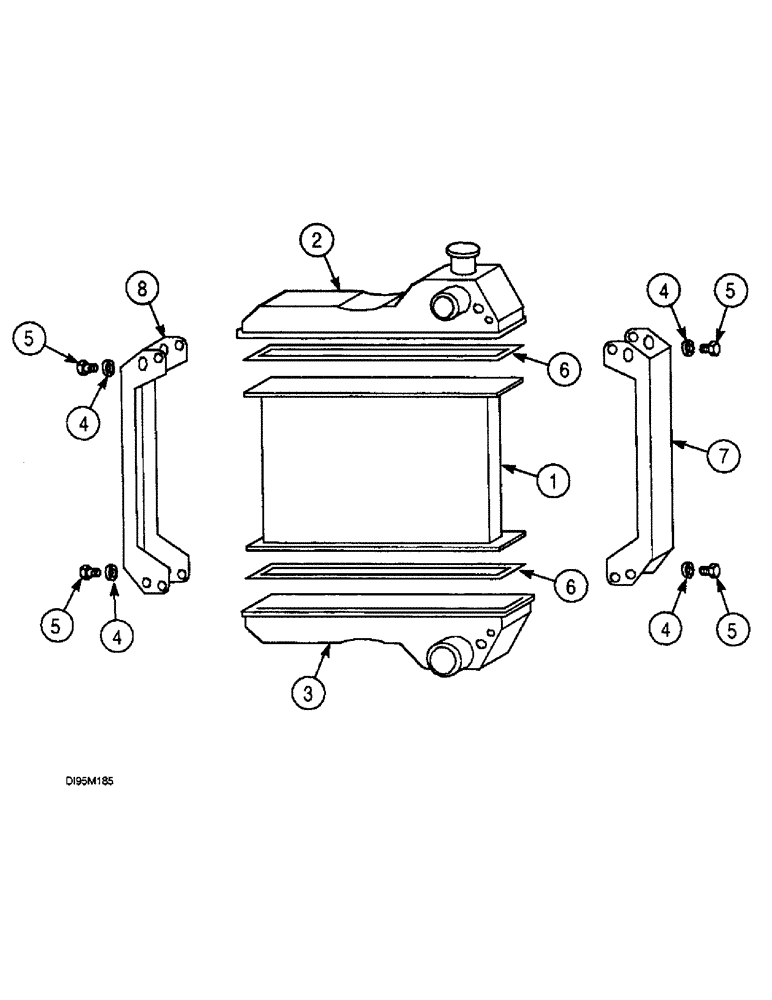

Запчасти Case IH 3230 (2-008) - RADIATOR, JJE0910720 - (02) - ENGINE

136856A1

RADIATOR

ASSEMBLY engine coolant, Includes Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

CORE radiator

1шт.

2

181844A1

RESERVOIR

TANK radiator, top

1шт.

3

181845A1

RESERVOIR

TANK radiator, bottom

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

flat, 9 x 21 x 1.6 mm

14шт.

5

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

14шт.

6

222841A1

PACKAGE

KIT gasket

1шт.

7

221954A1

SUPPORT

MEMBER left

1шт.

8

221955A1

SUPPORT

MEMBER right

1шт.
