Запчасти Case IH 3230 (6-094) - FORWARD AND REVERSE CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

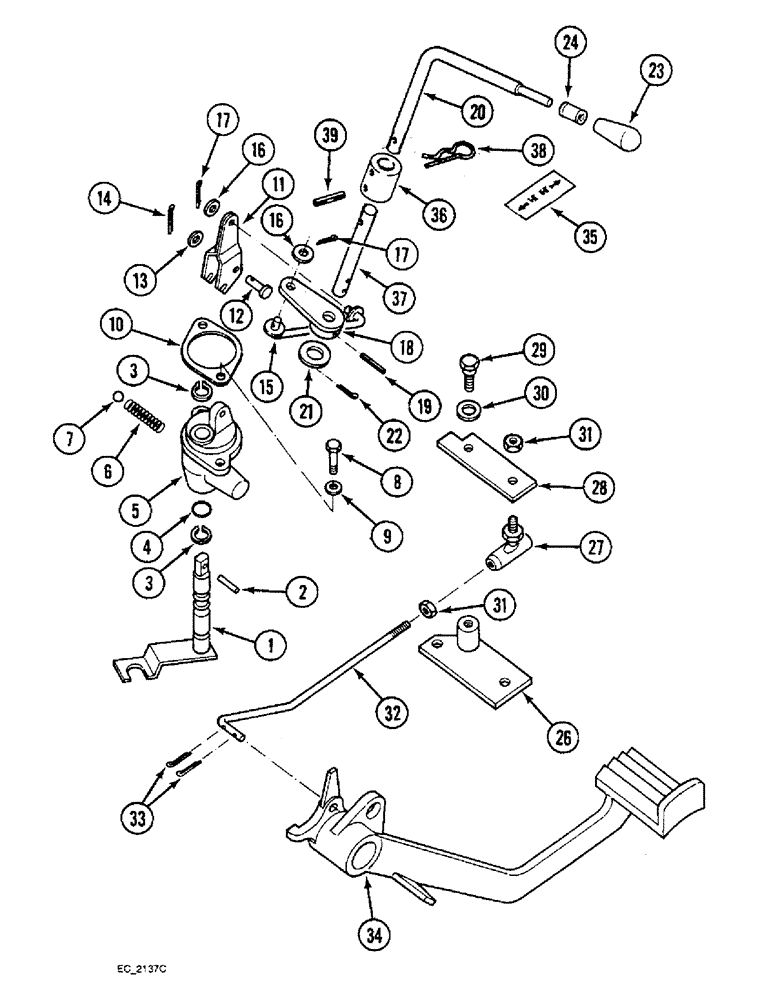

Схема запчастей Case IH 3230 - (6-094) - FORWARD AND REVERSE CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN
16
20
5
14
32
11
21
37
9
3
31
12
24
27
13
28
7
1
4
19
31
34
22
17
38
8
6
39
35
3
23
29
16
18
33
10
26
2
15
30
17
36

Артикул

Название

Примечание

Количество

1

531553R1

LEVER ASSY.

LEVER ASSEMBLY lockout control

1шт.

2

37-1316

DOWEL,3/16" x 1"

PIN dowel, hardened, 3/16 x 1 inch

1шт.

3

100-1862

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

5

402595R2

SUPPORT

control shaft

1шт.

6

402596R1

SPRING

control

1шт.

7

211-1014

BALL,7/16" Dia

chrome alloy steel, 7/16 inch, grade 24

1шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

2шт.

9

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

401623R1

GASKET

control shaft support

1шт.

11

1282951C2

LEVER

BELLCRANK ASSEMBLY forward and reverse control

1шт.

12

27-4090

CLEVIS PIN,1/4" x .906"

PIN clevis, 1/4 x 29/32 inch

1шт.

13

95-31027

WASHER,1/4"

flat, 17/64 x 5/8 x 3/64 inch

1шт.

14

32-410

COTTER PIN,1/16" x 5/8"

PIN, SPLIT (COTTER), 1/16" x 5/8"

1шт.

15

122202A1

ROD

ASSEMBLY control

1шт.

16

95-11028

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

2шт.

17

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

402585R2

ARM ASSY.

ARM ASSEMBLY control

1шт.

19

38-31014

PIN,5/32" x 7/8", Coiled

1шт.

20

143942A2

LEVER

ROD governor control handle, upper

1шт.

21

495-81195

WASHER,1 5/32" x 2 3/4" x .164"

flat, 17/32 x 1 x 1/16 inch

1шт.

22

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

23

1536683C1

HANDLE GRIP

KNOB ASSEMBLY control handle, Includes Ref. 24

1шт.

24

1536684C1

SPACER

RING star

1шт.

26

528942R1

PLATE ASSY.

PLATE ASSEMBLY mounting

1шт.

27

A19105

BALL JOINT

JOINT ball, 5/16 inch NF

1шт.

28

1282952C1

STRIP

locking

1шт.

29

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT shoulder

1шт.

30

495-81008

WASHER,.469" x 3/4" x .060"

flat, 15/32 x 3/4 x 1/16 inch

1шт.

30

495-81153

WASHER,.469" x 3/4" x .030"

flat, 15/32 x 3/4 x 1/32 inch

1шт.

31

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

32

528946R2

ROD

lockout

1шт.

33

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

34

1500212C93

PEDAL ASSY.

PEDAL clutch, See figure 6-052

1шт.

35

123616A1

DECAL

forward and reverse

1шт.

36

143941A2

COUPLING

COUPLER rods

1шт.

37

143943A2

LEVER

ROD governor control handle, lower

1шт.

38

198121A1

SPRING CLIP

PIN quick attachable

1шт.

39

38-31014

PIN,5/32" x 7/8", Coiled

1шт.

Выбрано товаров: 39
