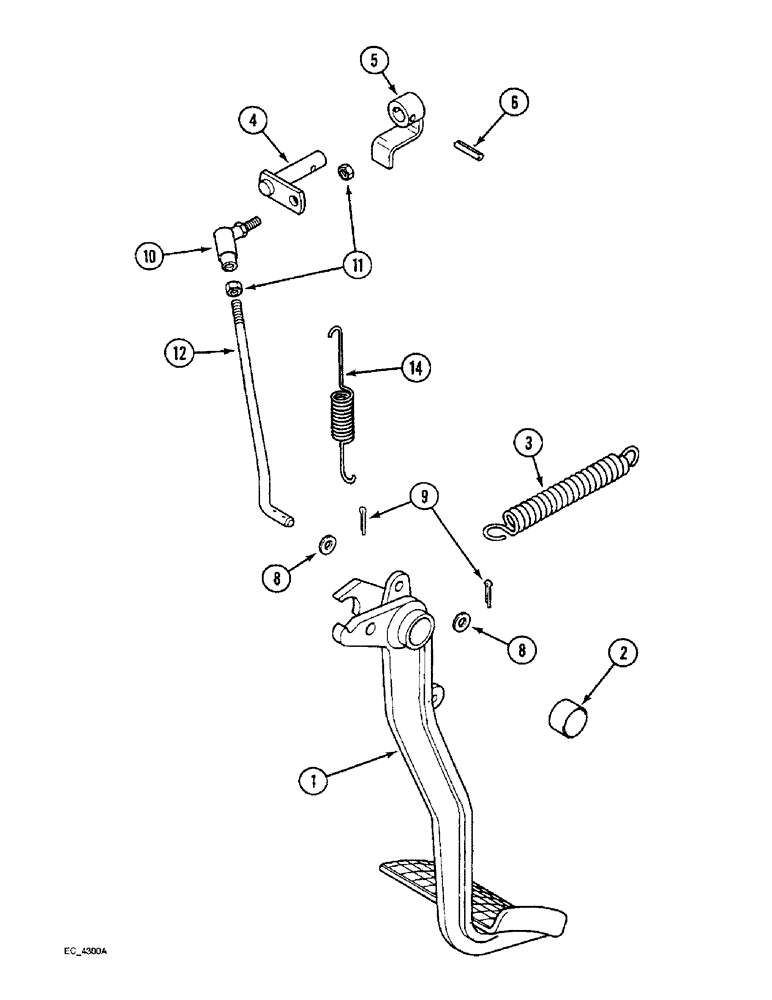

Запчасти Case IH 3230 (6-092) - FORWARD AND REVERSE LOCKOUT CONTROLS, TRACTOR WITH CAB (06) - POWER TRAIN

1

1343120C3

PEDAL ASSY.

PEDAL ASSEMBLY clutch, forward and reverse attachment, Includes Ref. 2

1шт.

2

3226548R1

BUSHING

pedal

1шт.

3

2783696R1

SPRING

tension

1шт.

4

1985224C2

SHAFT

ASSEMBLY lockout pivot

1шт.

5

1985227C1

ARM

ASSEMBLY lockout pivot

1шт.

6

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

10

A19105

BALL JOINT

JOINT ball, 5/16 inch NF

1шт.

11

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

12

1985229C2

STEM

ROD lockout

1шт.

14

104746A1

SPRING

lockout

1шт.
