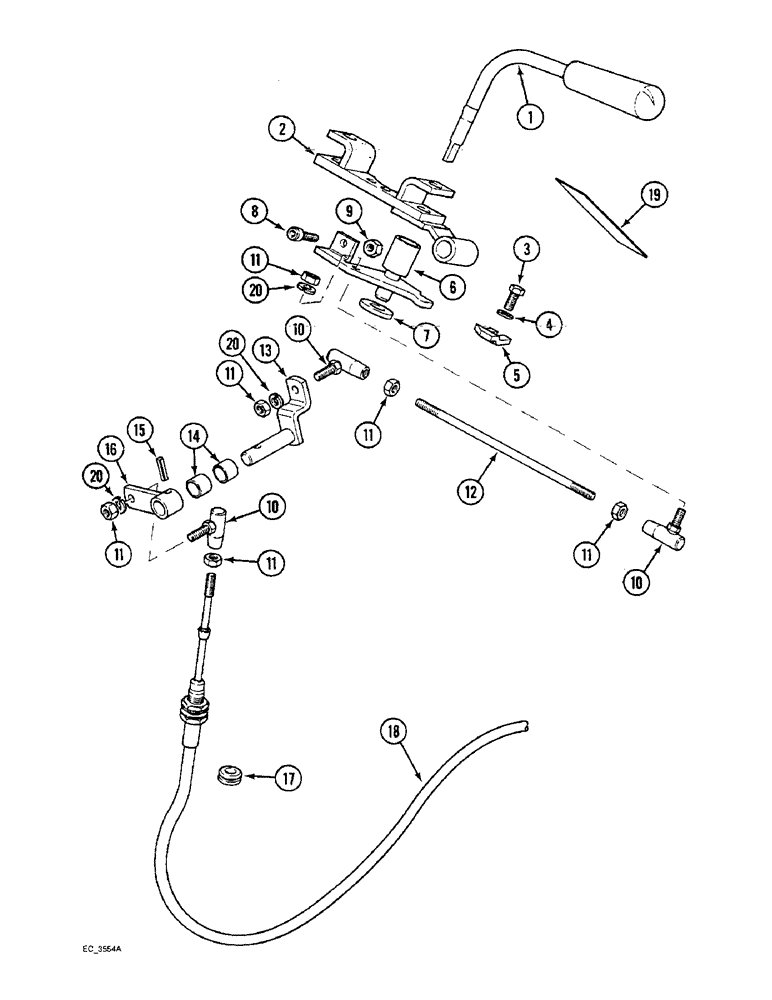

Запчасти Case IH 3230 (6-082) - CREEPER CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN

1

1500100C91

LEVER

HANDLE ASSEMBLY

1шт.

3221355R1

KNOB

HANDLE control

1шт.

3234942R1

ROD,10mm OD

ROD handle

1шт.

3234968R1

SPRING CLIP

CLIP control handle

1шт.

2

1985222C2

SUPPORT

ASSEMBLY handle

1шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

4

896-12006

WASHER,6.4mm ID x 13mm OD x 2mm Thk

flat, 6.4 x 12.5 x 2 mm

1шт.

5

1343038C2

STOP

handle travel

1шт.

6

1985220C4

LEVER

ASSEMBLY actuator lockout

1шт.

7

1343031C1

WASHER

wear

1шт.

8

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

9

825-1406

NUT,M6, Cl 8

1шт.

10

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT ball, C type, 1/4 inch

3шт.

11

425-114

NUT,1/4"-28, G5

5шт.

12

1343017C1

STEM

ROD actuator

1шт.

13

1343012C1

SHAFT

pivot

1шт.

14

3234944R1

BUSHING

cylinder

2шт.

15

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

16

1343015C1

ARM

bellcrank

1шт.

17

3114086R1

GROMMET

cable

1шт.

18

1343006C1

FLEXIBLE CONTROL

CABLE control

1шт.

19

1985097C2

DECAL

creeper speed

1шт.

20

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.
