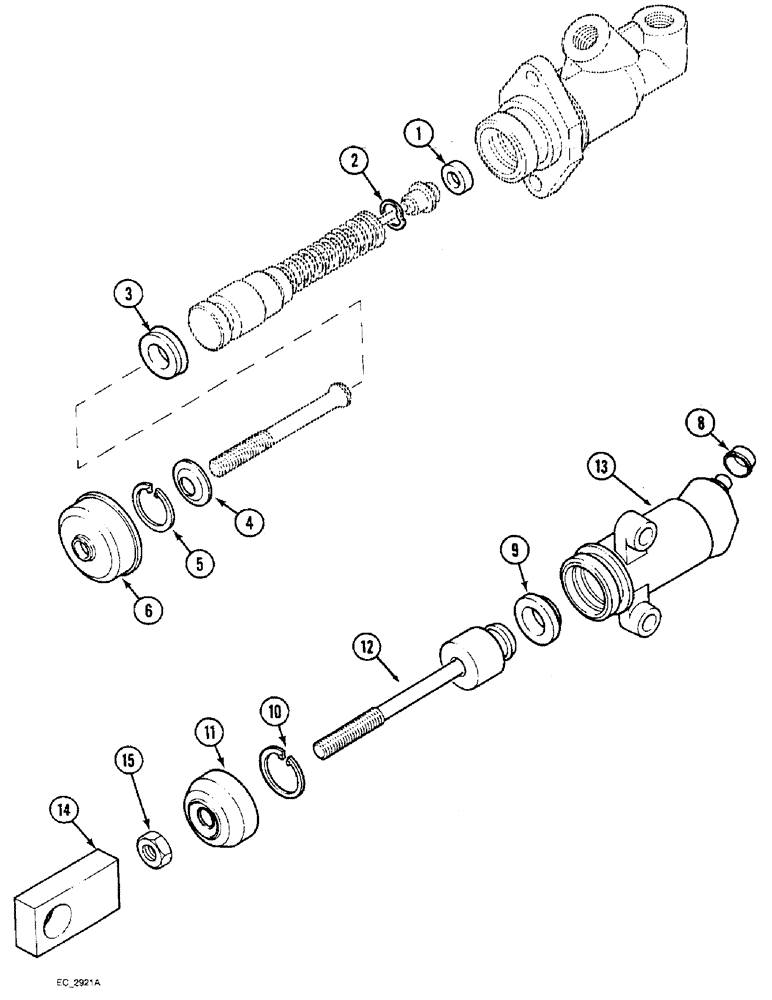

Запчасти Case IH 3230 (6-058) - CLUTCH HYDRAULIC CYLINDERS, TRACTOR WITH CAB, CLUTCH MASTER CYLINDER (06) - POWER TRAIN

3129807R92

MASTER CYLINDER

CYLINDER clutch master

1шт.

86011371R

REMAN-MASTER CYLINDE

3220 AFTER S/N 11070000, 3230, Both CASE IH TRACTOR (NORTH AMERICA), Cylinder Clutch Master, W/ Cab (1/94-12/98), Reman for New PN 3129807R92

1шт.

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

N7602

GASKET KIT

KIT service, clutch master cylinder, Replaces 80327C91, Includes Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL valve

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER retaining

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

6

NSS

NOT SOLD SEPARAT

COVER dust

1шт.

3129799R92

MASTER CYLINDER

CYLINDER clutch slave, Includes Ref. 8 - 15

1шт.

3129800R92

MASTER CYLINDER

CYLINDER slave, Includes Ref. 8 - 13

1шт.

80318C91

GASKET KIT

KIT service, Includes Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP dust, Order 80318C91

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL gland, Order 80318C91

1шт.

10

NSS

NOT SOLD SEPARAT

RING retaining, Order 80318C91

1шт.

11

NSS

NOT SOLD SEPARAT

COVER dust, Order 80318C91

1шт.

12

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

13

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

14

3129801R1

CLEVIS

EYE connecting

1шт.

15

824-1410

NUT,M10, Cl 5

hex

1шт.
