Запчасти Case IH 3230 (6-054) - CLUTCH CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN

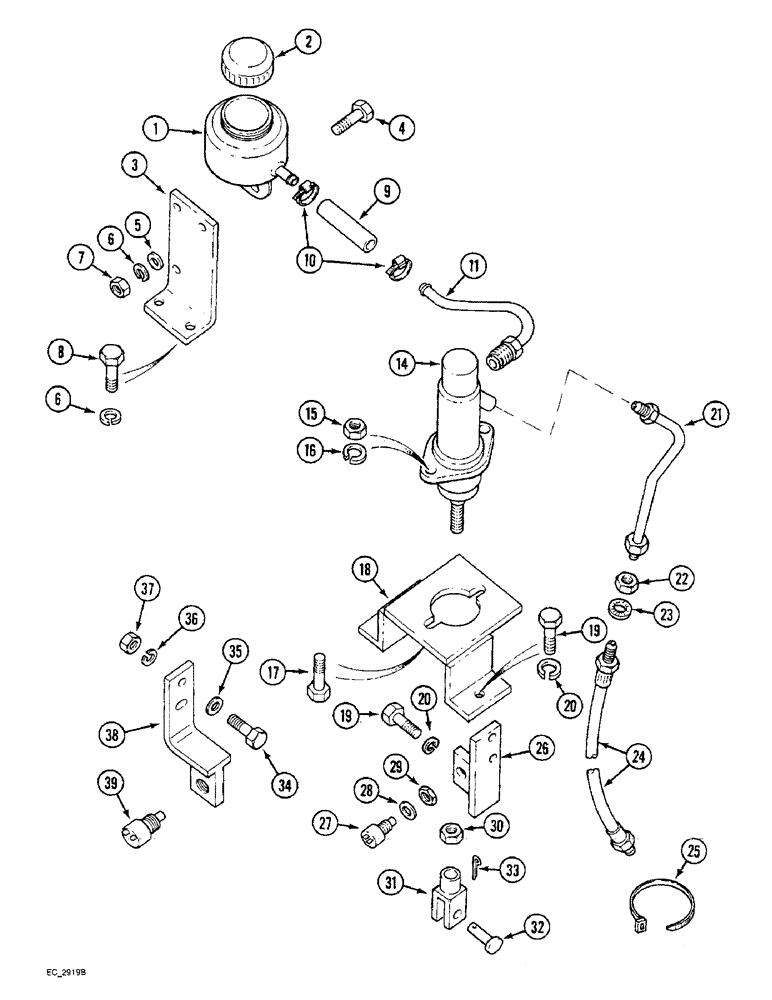

Схема запчастей Case IH 3230 - (6-054) - CLUTCH CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN
19
22
16
5
10
4
15
21
36
29
8
31
2
37
39
18
11
23
25
32
24
27
19
6
6
26
17
7
38
9
33
20
14
1
30
28
35
34
20
3

Артикул

Название

Примечание

Количество

1

1500732C93

RESERVOIR

clutch, complete with cap, Includes Ref. 2

1шт.

2

1500731C3

CAP

clutch reservoir

1шт.

3

3129809R3

SUPPORT

BRACKET reservoir support

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

8

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 - 1 x 20 mm

2шт.

9

3129793R1

HOSE,7.90 mm ID x 45.00 mm, SAE 100R6

- Reservoir 7.90 mm ID x 45.00 mm, SAE 100R6

1шт.

10

3125239R1

COLLAR

CLAMP hose

2шт.

11

3129811R2

PIPE ASSY.

PIPE reservoir

1шт.

14

3129807R92

MASTER CYLINDER

CYLINDER clutch master, See figure 6-058

1шт.

14

86011371R

REMAN-MASTER CYLINDE

3220 AFTER S/N 11070000, 3230, Both CASE IH TRACTOR (NORTH AMERICA), Cylinder Clutch Master, Upper, W/ Cab (1/94-12/98), Reman for New PN 3129807R92

1шт.

14

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 30 mm

2шт.

18

3129804R1

SUPPORT ASSY.

SUPPORT master cylinder

1шт.

19

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

21

1502285C1

PIPE ASSY.

PIPE clutch master cylinder

1шт.

22

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

23

893-10014

LOCK WASHER,Ext Tooth, M14

WASHER external tooth lock, 14 mm

1шт.

24

3129814R91

HOSE,450.00 mm, SAE 100R3

- Bulkhead 450.00 mm, SAE 100R3

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP tie, 14 in

1шт.

26

3129802R1

BRACKET

pedal stop, 16 mm hole

1шт.

27

3114409R92

NEUTRAL START SWITCH

SWITCH plunger, without 2 speed power shift

1шт.

28

Q3476

WASHER

flat, 19/32 x 15/16 x 1/64 inch

1шт.

29

3112570R1

NUT

NUT hex, 16 mm

1шт.

30

829-1310

NUT,M10, Cl 10

hex, 10 mm - 1.5, class 10

1шт.

31

713-2110

CLEVIS

adjusting

1шт.

32

1500530C1

CLEVIS PIN

PIN clevis

1шт.

33

1500531C1

CLIP, SPRING

CLIP spring

1шт.

34

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 30 mm

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

36

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER lock, 10 mm

2шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

38

1536783C1

SUPPORT

BRACKET ASSEMBLY plunger switch

1шт.

39

231262A1

SWITCH

plunger, 18 mm, with 2 speed power shift

1шт.

Выбрано товаров: 39
