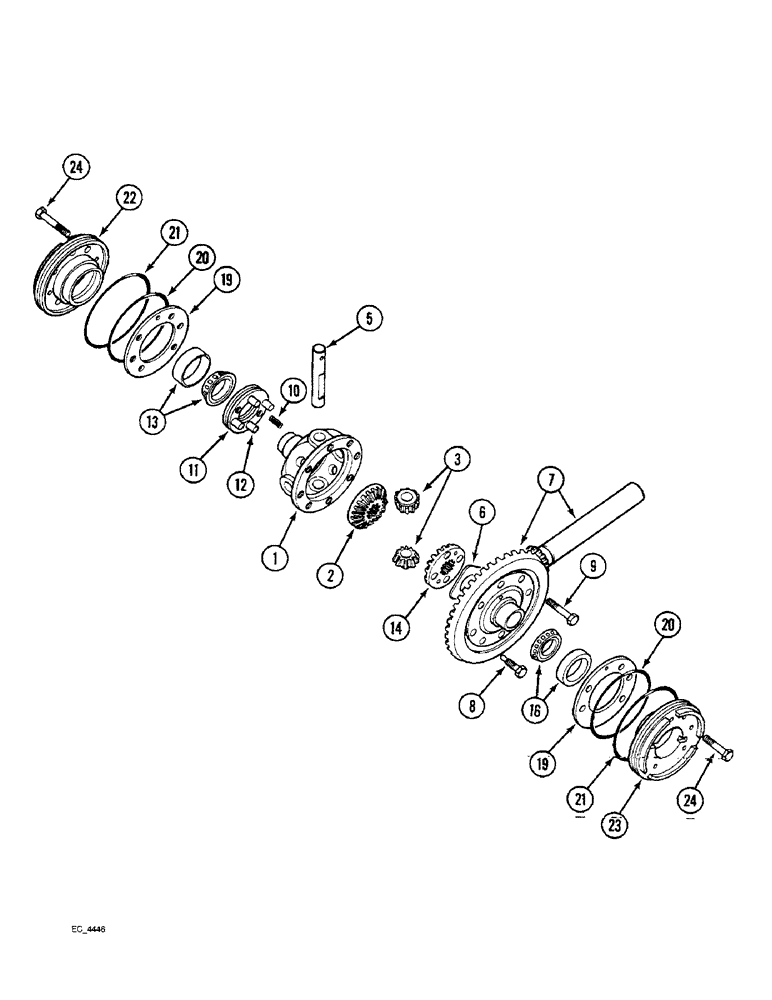

Запчасти Case IH 3230 (6-048) - DIFFERENTIAL (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER differential

1шт.

2

404336R1

PINION

GEAR bevel, differential, 20 teeth

1шт.

3

399776R1

PINION

GEAR differential pinion, 10 teeth

2шт.

5

399775R1

SHAFT

differential pinion

1шт.

6

399778R1

THRUST WASHER

thrust

1шт.

7

94252C1

GEAR, BEVEL

GEAR bevel, 11/52 teeth

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT dowel, 1/2 NC x 2-1/8 inch

1шт.

9

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

7шт.

10

400867R1

SPRING

differential lock

2шт.

11

399764R11

LOCKING RING

RING ASSEMBLY differential lock, Includes Ref. 12

1шт.

12

399765R1

PIN

coupling

4шт.

13

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY roller, right, Order 105497H and 52843V

1шт.

14

3129493R1

PINION

GEAR bevel, differential

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY roller, left, Order 105502H and 105496H

1шт.

65419C1

BEARING CARRIER

KIT service differential bearing carrier shims, Includes Ref. 19

1шт.

19

399771R1

SHIM

bearing carrier, 0.003 inch

1шт.

19

399772R1

SHIM

bearing carrier, 0.007 inch

1шт.

19

399773R1

SHIM

bearing carrier, 0.012 inch

1шт.

19

399774R1

SHIM

bearing carrier, 0.030 inch

1шт.

20

238-5367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 ID x 3/16 inch, class 6

2шт.

21

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

22

399770R2

BEARING CARRIER

CARRIER differential bearing

1шт.

23

399769R2

BEARING CARRIER

CARRIER differential bearing

1шт.

24

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.
