Запчасти Case IH 3230 (6-034) - REAR FRAME, TRANSFER OIL PUMP (06) - POWER TRAIN

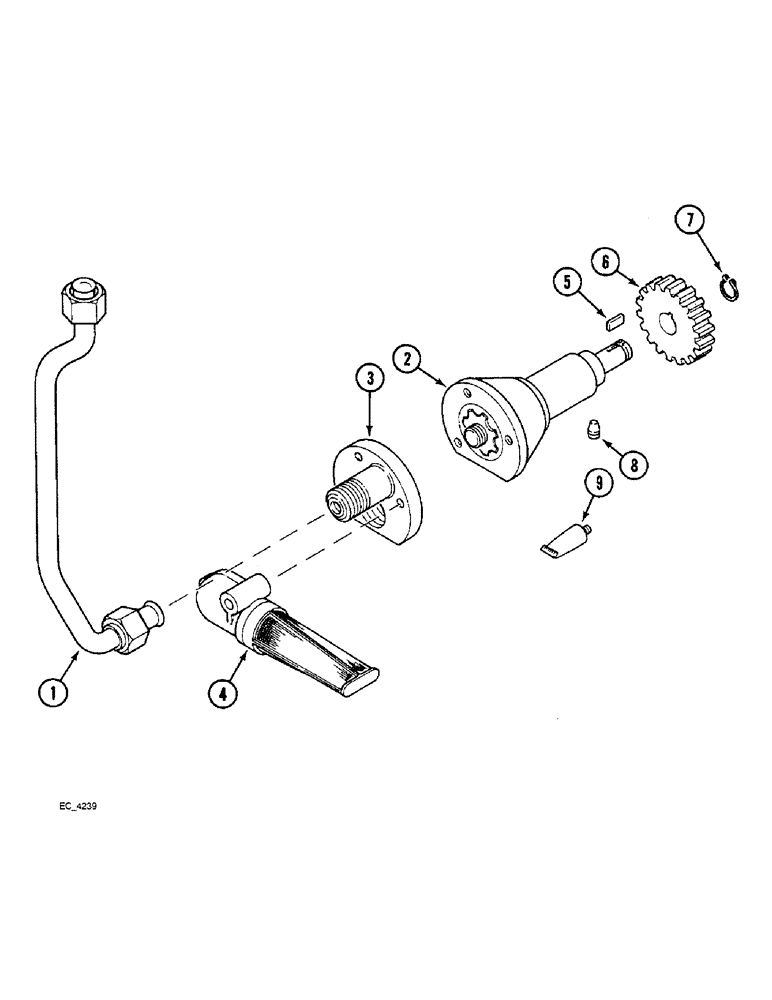

Схема запчастей Case IH 3230 - (6-034) - REAR FRAME, TRANSFER OIL PUMP (06) - POWER TRAIN
7
3
8
1
4
6
9
5
2

Артикул

Название

Примечание

Количество

1

115570A3

PIPE

transfer pump outlet

1шт.

2

116636A2

PUMP, HYDRAULIC,10.39 CC

PUMP ASSEMBLY oil transfer, Includes Ref. 3 and 4

1шт.

3

3123727R1

PLATE

end

1шт.

4

197581A1

STRAINER ELEMENT

STRAINER pump

1шт.

5

529100R1

BUCKET TOOTH KEY

KEY transfer pump driven gear

1шт.

6

528095R1

PINION

GEAR transfer pump driven, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING retaining

1шт.

8

83-2318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW hex, socket head 5/16 x 1/2 In

2шт.

9

345-188

GLUE

ADHESIVE 2 ounce tube, No. 847

1шт.

Выбрано товаров: 9
