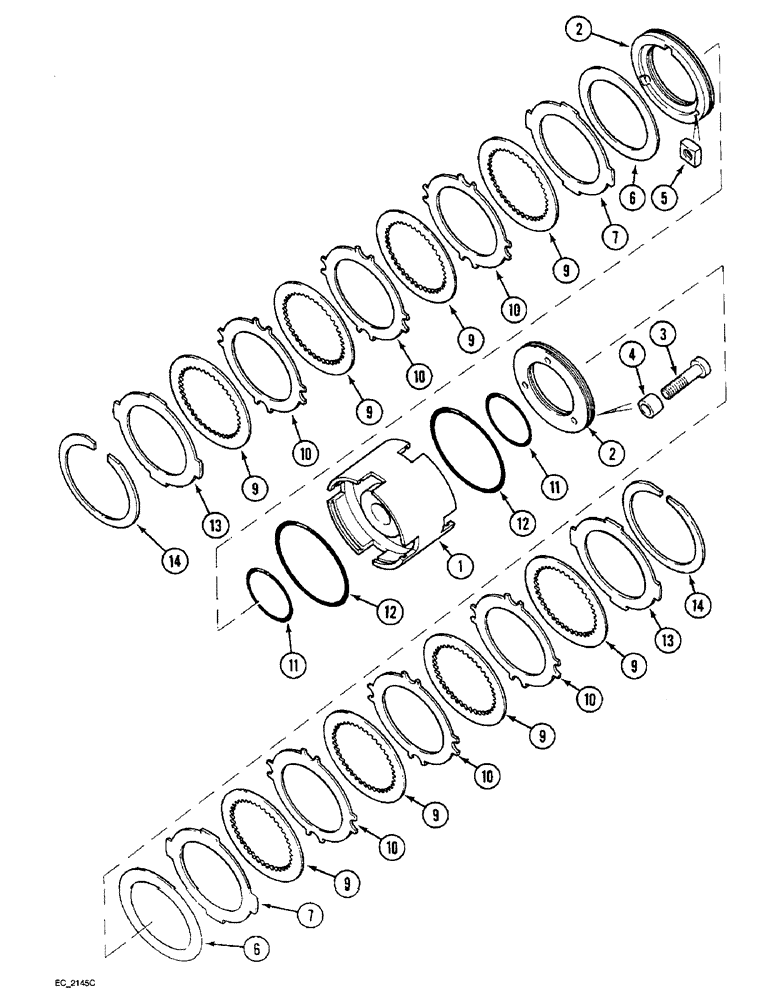

Запчасти Case IH 3230 (6-028) - SPEED TRANSMISSION, FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN

1

70015C1

CAGE

CUP direct drive clutch, See figure 6-022

1шт.

2

70017C1

PISTON

direct drive clutch

2шт.

3

1536134C1

HEX SOC SCREW,1/4" - 28 x 1-1/32", Gr 5

BOLT forward/reverse piston return

3шт.

4

527769R2

SPACER

piston

3шт.

5

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

1502338C91

SHIM KIT

KIT service, Includes Ref. 5

1шт.

6

70021C1

SHIM

piston return, 0.014 inch

2шт.

6

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

piston return, 0.024 inch

2шт.

6

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

piston return, 0.036 inch

2шт.

7

402572R1

PLATE

piston backing

2шт.

534937R92

PACKAGE, REPAIR

KIT service, Includes Ref. 9 - 12

1шт.

9

3125322R2

DISC

PLATE clutch driven

8шт.

10

401717R1

PLATE

clutch separator

6шт.

11

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston

2шт.

12

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston

2шт.

13

70016C1

PLATE

clutch backing

2шт.

14

401720R1

CIRCLIP

RING retaining

2шт.
