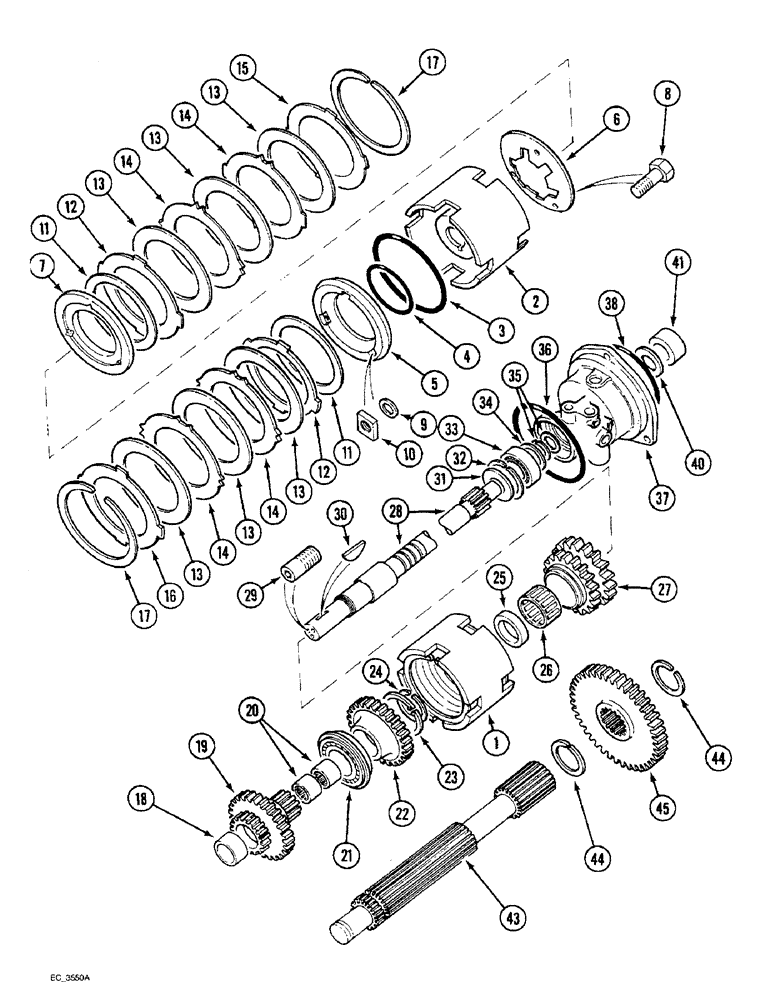

Запчасти Case IH 3230 (6-022) - SPEED TRANSMISSION, 2 SPEED POWER SHIFT ATTACHMENT (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY direct drive, Order components, Includes Ref. 2 - 17

1шт.

2

1502339C1

HOUSING

CUP direct drive clutch

1шт.

3

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston

1шт.

4

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

piston

1шт.

5

402570R1

PISTON

direct drive clutch

1шт.

6

402574R1

BELLEVILLE WASHER

WASHER Belleville

3шт.

7

402573R1

PLATE

pressure

1шт.

8

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT piston return

3шт.

9

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

piston support

3шт.

10

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

1502338C91

SHIM KIT

KIT service, Includes Ref. 11

1шт.

11

70021C1

SHIM

piston return, 0.014 inch

2шт.

11

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

piston return, 0.024 inch

2шт.

11

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

piston return, 0.036 inch

2шт.

12

402572R1

PLATE

piston backing

2шт.

13

401716R3

DISC

PLATE clutch driven

6шт.

14

401717R1

PLATE

clutch separator

4шт.

15

1502340C1

PLATE

clutch backing

1шт.

16

402569R1

PLATE

clutch backing

1шт.

17

401720R1

CIRCLIP

RING retaining

2шт.

18

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

needle, clutch shaft

1шт.

19

3118321R2

PINION

GEAR direct drive hub, 28 teeth

1шт.

20

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING needle

2шт.

21

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

22

404199R3

SPROCKET ASSY.

CARRIER direct drive clutch disc

1шт.

23

101-11175

SNAP RING,#175, 1.640", Ext

RING clutch release spring return, 1.64 inch

1шт.

24

101-11125

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

25

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL oil

1шт.

26

402566R1

BEARING ASSY

ASSEMBLY sprag

1шт.

27

402563R2

PINION

GEAR ASSEMBLY drive, 27 teeth

1шт.

28

92757C91

SHAFT

ASSEMBLY clutch, Includes Ref. 29, Serial Range: -JJE0924101

1шт.

Order PN 92757C91 only before Transmission SN JKA0300417

1шт.

28

248319A1

SHAFT ASSY.

SHAFT ASSEMBLY clutch, Includes Ref. 29, Start Serial: JJE0924102

1шт.

Order PN 248319A1 only after Transmission SN JKA0300416

1шт.

Part of power shift kit P/N 249689A1

1шт.

29

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW hex socket headless, 1/4 NC x 1/4 inch, cup point

1шт.

29

1345890C1

PLUG

sealing, 5 mm

1шт.

30

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

31

402562R1

THRUST WASHER

WASHER thrust clutch shaft

1шт.

32

377911R1

RING, SNAP

RING retaining

1шт.

33

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.

34

A21619

CIRCLIP

RING snap

1шт.

35

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

clutch shaft piston, Serial Range: -JJE0924101

2шт.

Order PN 85038C1 only before Transmission SN JKA0300417

1шт.

35

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

RING seal, Start Serial: JJE0924102

1шт.

Order PN A175509 only after Transmission SN JKA0300416

1шт.

Part of power shift kit P/N 249689A1

1шт.

36

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

37

1342861C4

ROLLER CAGE BEARING

CAGE ASSEMBLY IPTO and clutch cup retainer, Serial Range: -JJE0924101

1шт.

Order PN 1342861C4 only before Transmission SN JKA0300417

1шт.

37

225134A1

BALL RACE

CAGE ASSEMBLY bearing, Start Serial: JJE0924102

1шт.

Order PN 225134A1 only after Transmission SN JKA0300416

1шт.

Part of power shift kit P/N 249689A1

1шт.

38

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

40

114321A1

OIL SEAL

oil, IPTO drive shaft

1шт.

41

108982C1

OIL SEAL

SEAL oil

1шт.

43

404104R3

SHAFT

counter

1шт.

44

101-11187

SNAP RING,#187, 1.759", Ext

RING retaining, external

2шт.

45

404105R1

PINION

GEAR driven, 42 teeth

1шт.

249689A1

PACKAGE, REPAIR

KIT power shift, clutch input shaft, Includes Ref. 28, 38 and 37

1шт.
