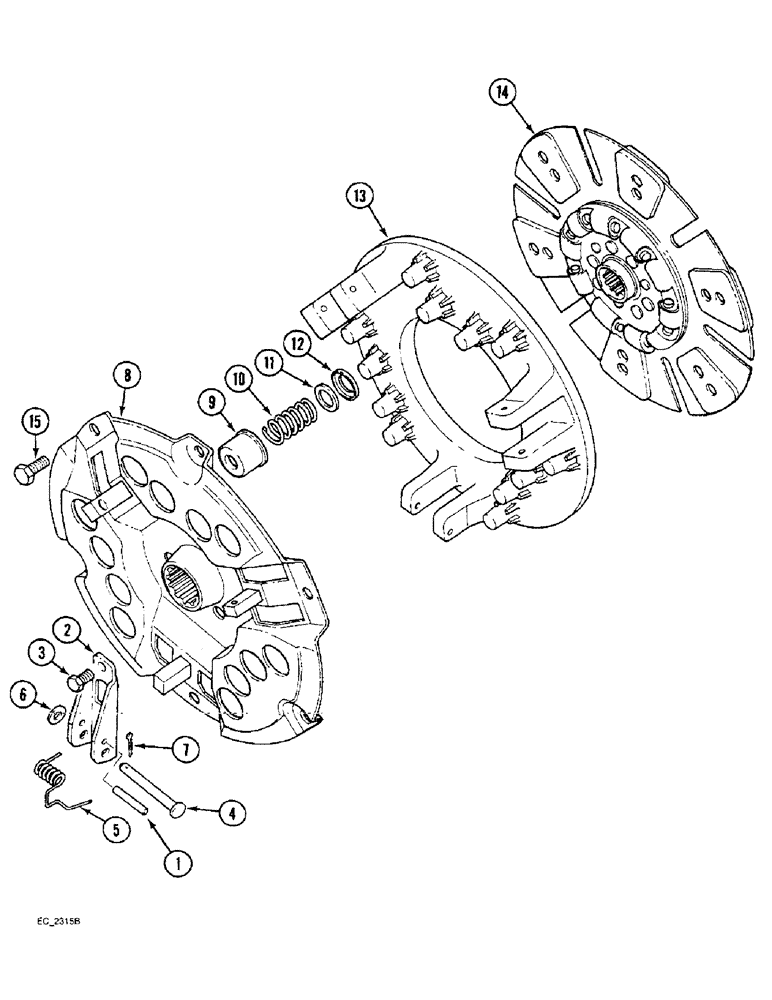

Запчасти Case IH 3230 (6-004) - HEAVY DUTY CLUTCH, ROCKFORD 12 INCH (06) - POWER TRAIN

389770A1

REMAN-CLUTCH KIT

Contains Plessure Plate, Release Bearing, Clutch Disc & Pilot Bearing

1шт.

389770A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

1944257C1

COVER ASSY

PLATE ASSEMBLY clutch pressure, remanufactured

1шт.

1944258C1

CORE-CLUTCH PLATE

Return Part Number, use this to return core for credit

1шт.

85025C2

CLUTCH ASSEMBLY

PLATE ASSEMBLY clutch pressure, Includes Ref. 1 - 13

1шт.

85025C2R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 12 in, 10 Tooth Hub

1шт.

85025C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

84342556R

REMAN-CLUTCH PLATE

3220 (AFTER S/N 11070000), 3230, Both (1/94-12/98), Reman For New PN 85025C2

1шт.

84342556C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

140296A1

PIVOT PIN

PIN pivot lever

3шт.

85120C92

KIT

KIT lever assembly, Includes Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER release, Order kit 85120C92

3шт.

3

129219A1

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 1/2", Gr 8

SCREW adjusting

3шт.

4

149487R1

PIN

PIN lever pivot

3шт.

5

375572R1

SPRING

SPRING lever tension

3шт.

6

95-11034

WASHER,1/4"

WASHER flat, 11/32 x 11/16 x 1/16 inch

3шт.

7

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

PLATE ASSEMBLY back

1шт.

9

353316R1

SPRING CUP

CUP spring

12шт.

10

349934C1

SPRING

SPRING pressure plate

12шт.

11

311291C1

INSULATING WASHER

WASHER insulating

12шт.

12

311292C1

WASHER

WASHER retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE clutch

1шт.

14

85026C3

CLUTCH DISC,305mm OD

CLUTCH DISK PLATE ASSEMBLY clutch driven disc

1шт.

14

85026C3R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

14

85026C3C

CORE-CLUTCH DISC

Return Part Number

1шт.

14

1944259C1

DRIVEN PLATE

PLATE ASSEMBLY clutch driven disc, remanufactured

1шт.

14

1944260C1

CORE-CLUTCH PLATE

Return Part Number, use this to return core for credit

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.
