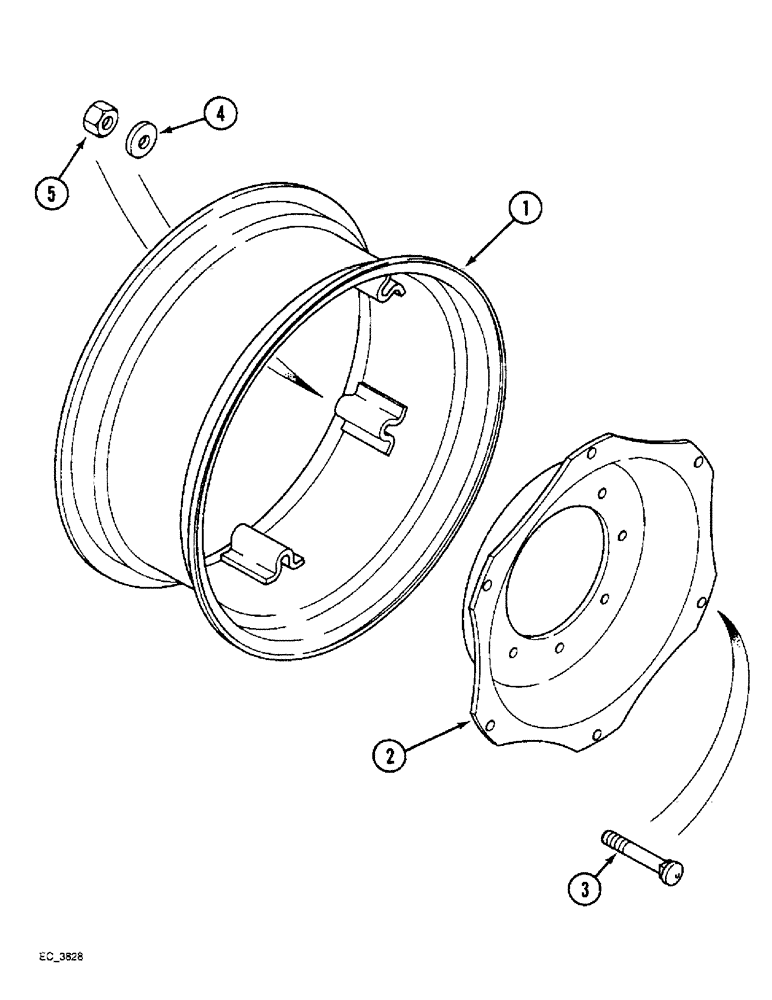

Запчасти Case IH 3230 (5-056) - FRONT WHEELS - CAN - AM (05) - STEERING

1

1985675C1

RIM

adjustable, 7-24, for 8.3 x 24 or 9.5 x 24 tires

2шт.

2

1985673C1

DISC, WHEEL

DISC, 24 inch wheel

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

BOLT round head, 16 mm x 80 mm

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

1

1985672C1

RIM

adjustable, 10-24, for 11.2 x 24 or 12.4 x 24 tires

2шт.

2

1985673C1

DISC, WHEEL

DISC, 24 inch wheel

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

BOLT round head, 16 mm x 80 mm

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

1

D72304

RIM

adjustable, W12-24, for 13.6 x 24 or 14.9 x 24 tires

2шт.

2

1985673C1

DISC, WHEEL

DISC, 24 inch wheel

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

BOLT round head, 16 mm x 80 mm

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.

1

1985685C1

RIM

adjustable, 10-28, for 11.2 x 28 or 13.6 x 28 tires

2шт.

2

1985686C1

DISC, WHEEL

DISC, 28 inch wheel

2шт.

3

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

BOLT round head, 16 mm x 80 mm

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

flat, 17.5 x 30 x 4 mm, hardened

12шт.

5

825-1416

NUT,M16, Cl 8

12шт.
