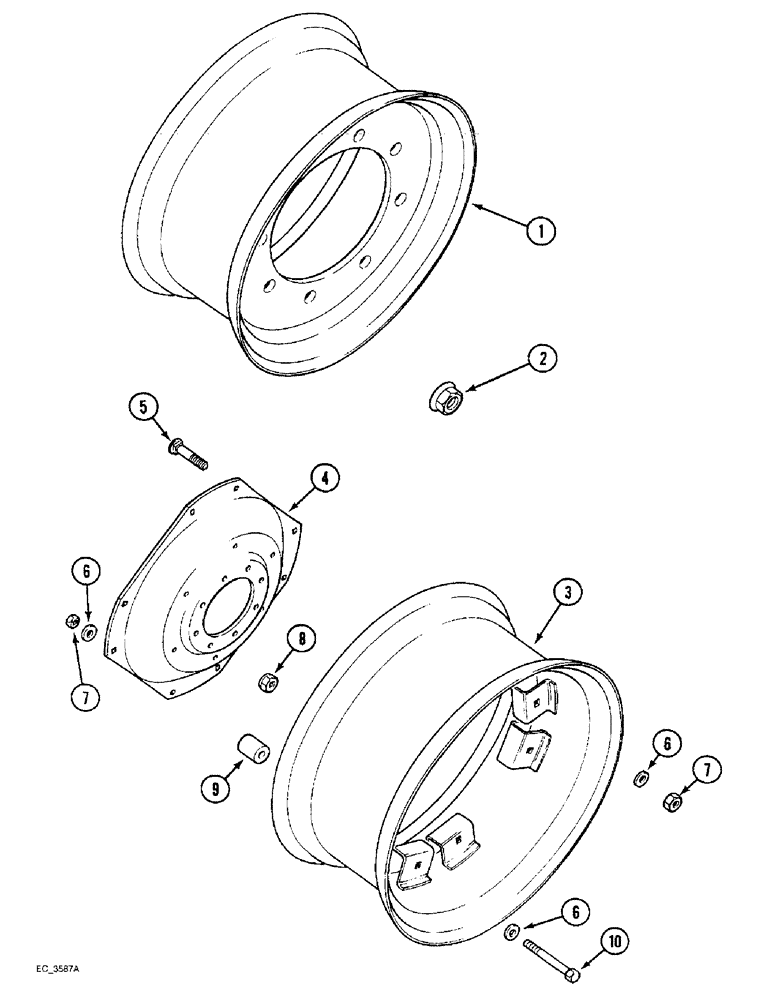

Запчасти Case IH 3230 (5-052) - FRONT WHEELS, MFD TRACTOR (05) - STEERING

1

1343074C1

WHEEL

front, 9.75-16.5, for 10.5 x 16.5 tire, 16-1/2 inch

2шт.

1

1343071C1

WHEEL

front, 5.5-16, for 7.50 x 16 tire, 16-1/2 inch

2шт.

1

1328756C1

WHEEL

front, 9.00-18, for 10.5-18 tire, 16-1/2 inch

2шт.

1

1343072C1

WHEEL

front, 10.5-17.5, for 14 x 17.5 tire, 16-1/2 inch

2шт.

2

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, flange, 18 mm, 16-1/2 inch

16шт.

3

1531577C2

RIM

adjustable, W10-24, for 11.2 x 24 tire, 24 inch wheel

2шт.

4

1343042C1

DISC, WHEEL

DISC, 24 inch wheel

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

6

1335135C1

WASHER

flat, 17 x 33 x 5 mm, 24 inch wheel

16шт.

7

1335134C1

NUT

hex, 16 mm - 2.00, 24 inch wheel

16шт.

8

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, flange, 18 mm, 24 inch wheel

16шт.

3

T103477

RIM

adjustable, 12 - 24, for 13.6 x 24 tire, 24 inch wheel

2шт.

4

1343042C1

DISC, WHEEL

DISC, 24 inch wheel

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT carriage, 16 mm - 2.00 x 74 mm, 24" wheel

16шт.

6

1335135C1

WASHER

flat, 17 x 33 x 5 mm, 24 inch wheel

16шт.

7

1335134C1

NUT

hex, 16 mm - 2.00, 24 inch wheel

16шт.

8

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, flange, 18 mm, 24 inch wheel

16шт.

9

1985737C1

SPACER

for 80 inch tread, 24 inch wheel

8шт.

10

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

- hex, 16 - 2.0 x 120 mm, class 10.9, 24" wheels

8шт.
