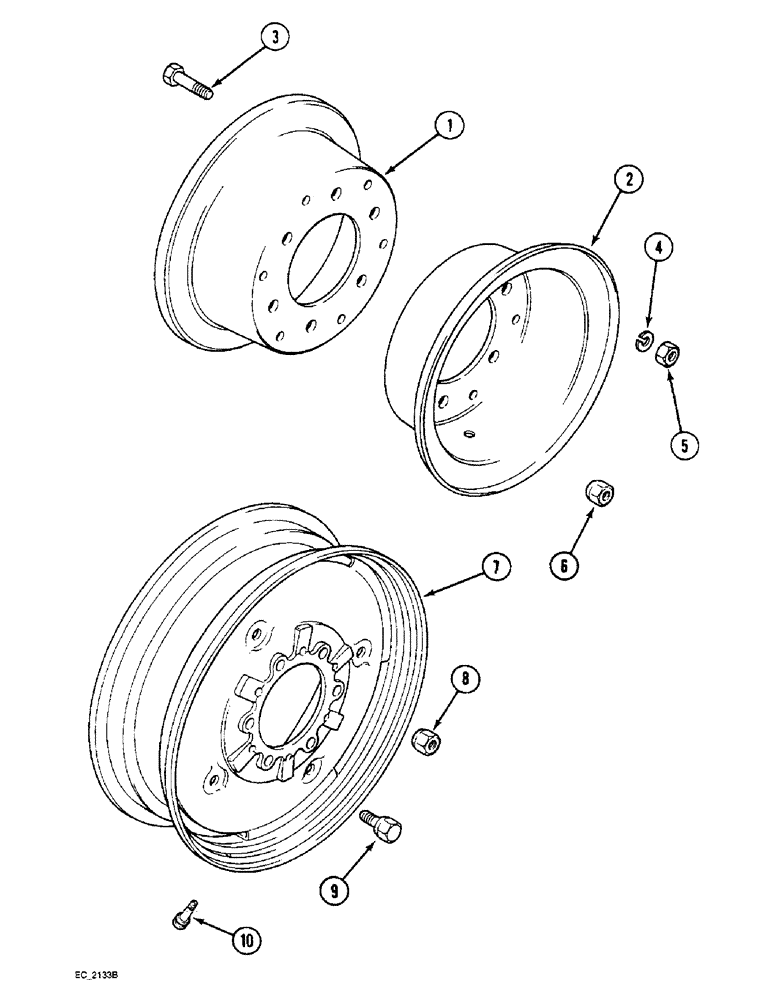

Запчасти Case IH 3230 (5-050) - FRONT WHEELS, 2 WHEEL DRIVE (05) - STEERING

1

386081R1

WHEEL

front, inner half, 4.50-10, for 9.00 x 10 tire, 10 inch split

2шт.

2

386082R1

WHEEL

front, outer half, 4.50-10, 10 inch split

2шт.

3

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

hex, 1/2 NF x 1 inch, 10 inch split

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 10" split 1/2"

12шт.

5

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF, 10 inch split

12шт.

6

453770R1

WHEEL NUT

hex, 1/2 inch NF, 10 inch split

12шт.

1

A36740

WHEEL

front, inner, 5.50-10, 10 inch split

2шт.

2

A36741

WHEEL

front, outer, 5.50-10, 10 inch split

2шт.

3

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

hex, 1/2 NF x 1 inch, 10 inch split

20шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 10" split 1/2"

20шт.

5

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF, 10 inch split

20шт.

6

453770R1

WHEEL NUT

hex, 1/2 inch NF, 10 inch split

12шт.

7

1287905C2

WHEEL ASSY.

WHEEL front, complete, 12-10.50, for 26 x 12.00 tire, 12 inch

2шт.

7

G57007

WHEEL

front, complete, 6LB-15, for 7.5I x 15 tire, 15 inch

2шт.

7

528687R1

WHEEL

front, complete, W8L-15, for 9.5L x 15 tire, 15 inch

2шт.

7

361714R91

WHEEL ASSY.

WHEEL front, complete, 4.25-16, for 6.00 x 16 tire, 16 inch

2шт.

7

364343R92

WHEEL

front, complete, 5.50-16, for 7.50 x 16 tire, 16 inch

2шт.

7

G57046

WHEEL ASSY.

WHEEL front, complete, French and Hecht, 5.50-16, for 7.50 x 16 tire, 16 inch

2шт.

7

403655R1

WHEEL

front, complete, 8LB-16, for 10 x 16 tire, 16 inch

2шт.

7

370779R92

RIM

WHEEL front, complete, 7.50-20, for 7.50 x 20 tire, 20 inch

2шт.

8

453770R1

WHEEL NUT

hex, 1/2 inch NF, mounting hardware 12, 15, 16 and 20 inch wheels

12шт.

9

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT guide wheel, 16 inch wheels on cast front axle, mounting hardware 12, 15, 16 and 20 inch wheels

12шт.

10

387897R91

VALVE STEM

VALVE inflation, TR 415, mounting hardware 12, 15, 16 and 20 inch wheels

1шт.
