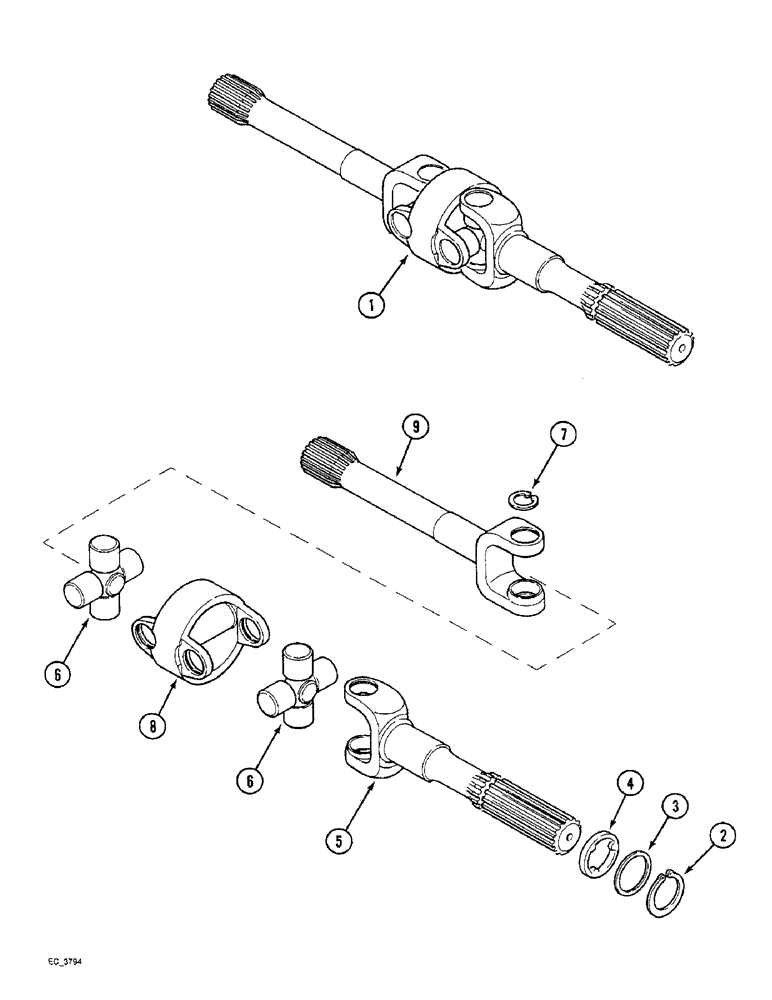

Запчасти Case IH 3230 (5-046) - MECHANICAL FRONT DRIVE, DRIVE SHAFTS (05) - STEERING

1

1537637C1

DRIVE SHAFT

SHAFT ASSEMBLY drive, Includes Ref. 2 - 9

2шт.

2

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining, Incl. Ref. 3 M34, Ext

1шт.

3

100565A1

WASHER, THRUST

WASHER thrust

1шт.

4

100550A1

THRUST WASHER

thrust

1шт.

5

100544A1

HALF SHAFT

SHAFT axle, wheel side

1шт.

100546A1

U-JOINT SPIDER

JOINT universal, Includes Ref. 6

2шт.

6

NSS

NOT SOLD SEPARAT

SPIDER, Order 100546A1, Includes Ref. 7

2шт.

7

100548A1

CIRCLIP

RING snap

4шт.

8

100545A1

BODY

connecting

1шт.

9

1537635C1

HALF SHAFT

SHAFT half, differential side

1шт.
