(5-044) - MECHANICAL FRONT DRIVE, DIFFERENTIAL

Запчасти Case IH 3230 (5-044) - MECHANICAL FRONT DRIVE, DIFFERENTIAL (05) - STEERING

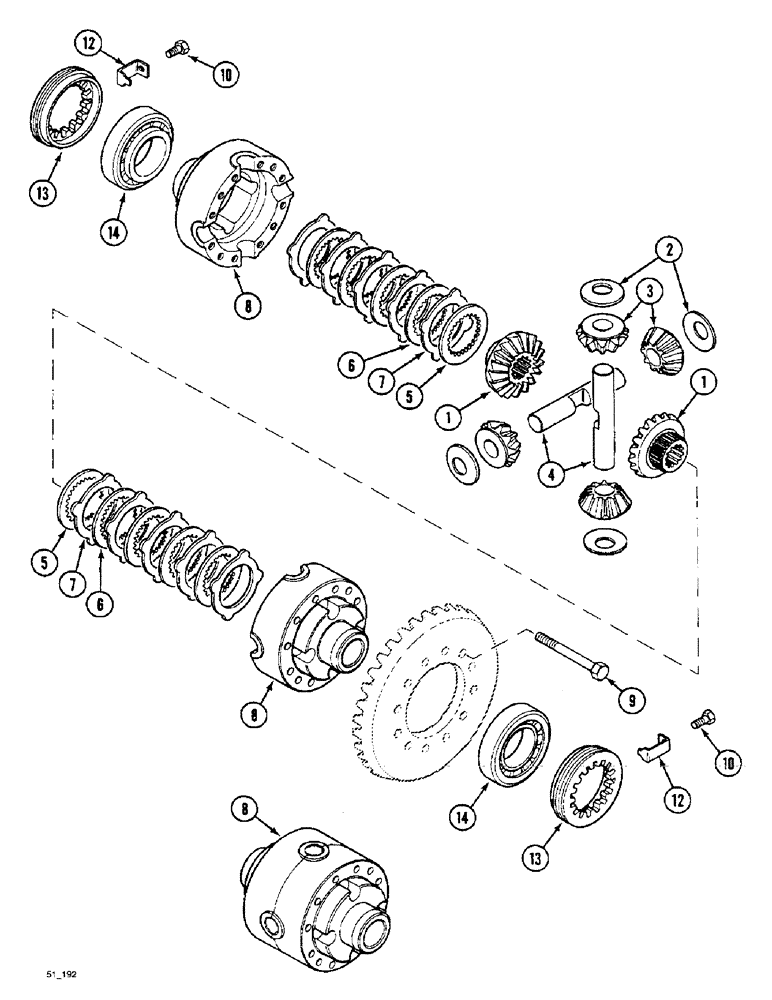

Схема запчастей Case IH 3230 - (5-044) - MECHANICAL FRONT DRIVE, DIFFERENTIAL (05) - STEERING
14
13
3
14
13
1
8
5
9
4
12
1
6
8
7
2
10
10
5
6
7
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1984942C1

PINION

GEAR pinion

2шт.

2

1966560C1

THRUST WASHER

WASHER thrust

2шт.

3

1966152C1

SUN GEAR

GEAR

2шт.

4

K261865

SPINDLE

PIN differential

2шт.

5

1966154C1

PLATE

backing

2шт.

6

1966156C1

WASHER

PLATE driven

8шт.

7

1966155C1

PLATE

drive

10шт.

8

100542A1

HOUSING

ASSEMBLY self-locking differential

1шт.

9

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, special, 6 - 1 x 12 mm

2шт.

12

1966153C1

LOCKING PLATE

BRACKET lock

2шт.

13

1966559C1

NUT

RING, LOCKING

2шт.

14

1964245C1

TAPERED BEARING,45mm ID x 85mm OD x 20.75mm W

BEARING tapered roller

2шт.
