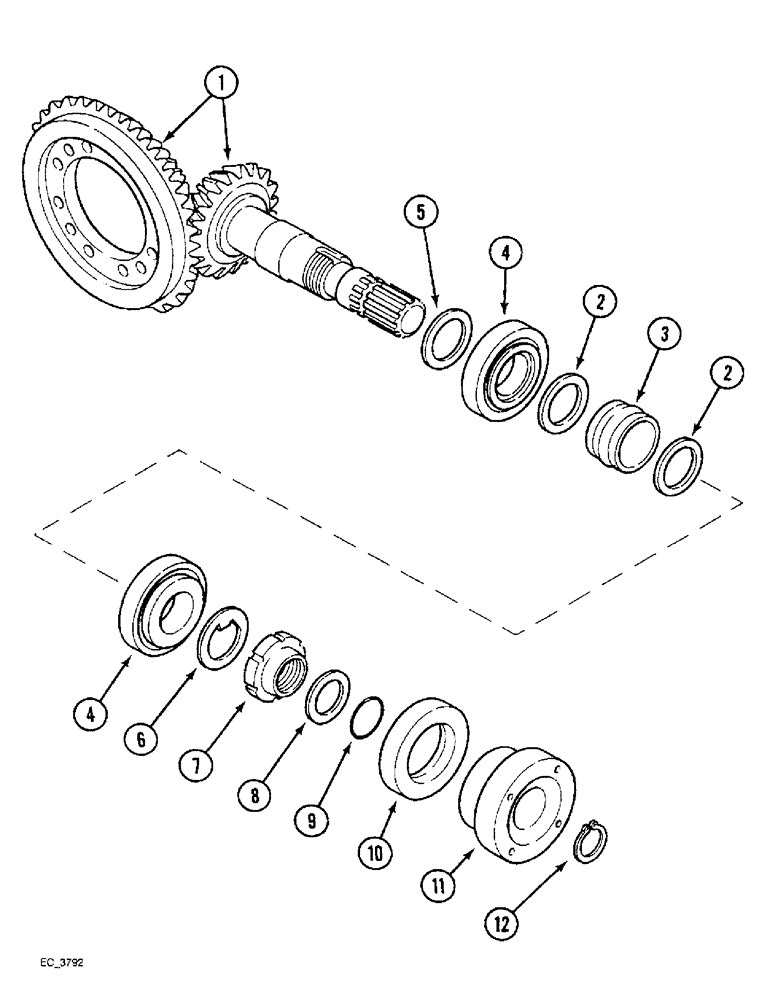

Запчасти Case IH 3230 (5-042) - MECHANICAL FRONT DRIVE, BEVEL GEAR PINION SET (05) - STEERING

1

1537626C1

GEAR, BEVEL

SHAFT with drive bevel gear, 9/32 teeth

1шт.

1

193524A1

GEAR, BEVEL

SHAFT with drive bevel gear, 10/32 teeth

1шт.

2

1984946C1

WASHER

spacer

2шт.

3

1537627C1

SPACER

2шт.

4

3232726R91

TAPERED BEARING

tapered roller

2шт.

5

1966172C1

SHIM

2.50 mm thick

1шт.

5

1966173C1

SHIM

2.60 mm thick

1шт.

5

1966174C1

SHIM

2.70 mm thick

1шт.

5

1966175C1

SHIM

2.80 mm thick

1шт.

5

1966176C1

SHIM

2.90 mm thick

1шт.

5

1966177C1

SHIM

3.00 mm thick

1шт.

5

1966178C1

SHIM

3.10 mm thick

1шт.

5

1966179C1

SHIM

3.20 mm thick

1шт.

5

1966180C1

SHIM

3.30 mm thick

1шт.

5

1966181C1

SHIM

3.40 mm thick

1шт.

6

1966574C1

WASHER

special

1шт.

7

1966573C1

RING NUT

RING nut, 35 mm - 1.5 mm

1шт.

8

1966264C1

THRUST WASHER

WASHER thrust

1шт.

9

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1-3/16 ID x 1/8

1шт.

10

1966194C1

OIL SEAL

SEAL oil

1шт.

11

1966270C1

FLANGE

differential

1шт.

12

800-1130

SNAP RING,M30, Ext

1шт.
