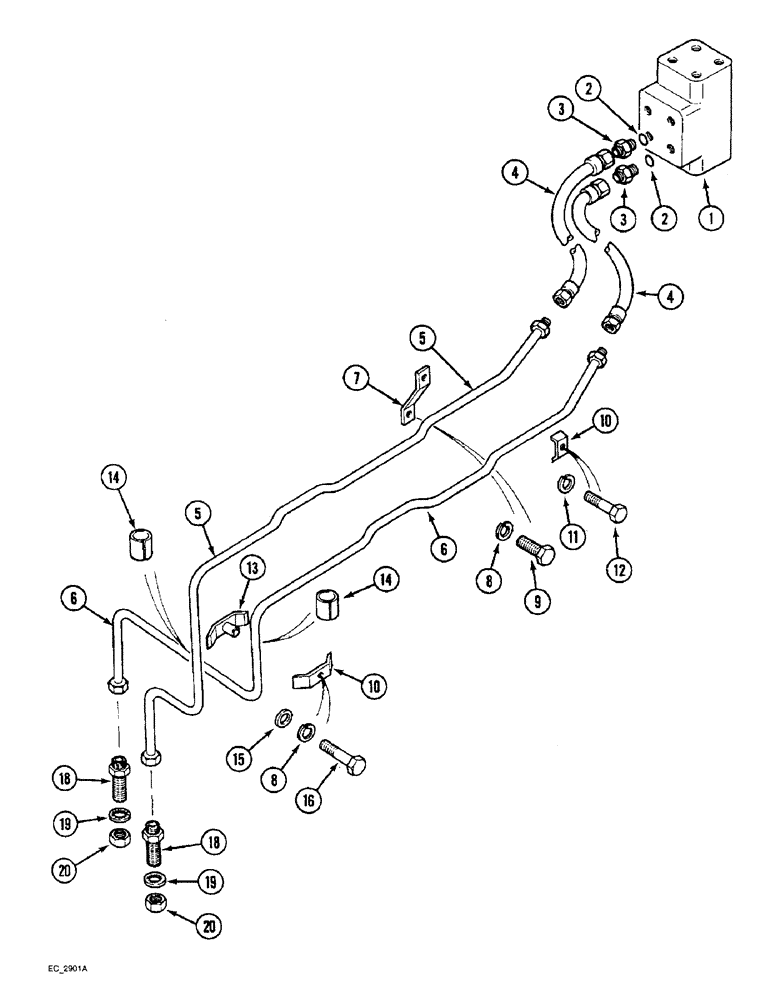

Запчасти Case IH 3220 (5-006) - POWER STEERING TUBES, FRONT, 2 WHEEL DRIVE TRACTOR (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY integral, power steering, See figure 5-022

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

4

99784C2

HOSE,9.53mm ID x 700mm L, SAE 100R1

power steering, without cab

2шт.

4

1502283C2

HOSE

flexible, with cab

2шт.

5

139323A2

HYD TUBE,0.375" OD, 713, 331 mm Length

TUBE ASSY left, without cab, 3220, Serial Range: -JJE0910719

1шт.

5

180500A1

PIPE

TUBE ASSY left, without cab, 3220, Start Serial: JJE0910720

1шт.

5

99486C4

PIPE

TUBE ASSY left, without cab, 3230, Serial Range: -JJE0910719

1шт.

5

180497A1

PIPE,0.375" OD

TUBE ASSY left, without cab, 3230, Start Serial: JJE0910720

1шт.

5

99753C5

PIPE

TUBE ASSY left, with cab, 3230

1шт.

6

139322A2

HYD TUBE,0.375" OD, 699, 347 mm Length

TUBE ASSY right, without cab, 3220, Serial Range: -JJE0910719

1шт.

6

180499A1

PIPE

TUBE ASSY right, without cab, 3220, Start Serial: JJE0910720

1шт.

6

99485C4

PIPE

TUBE ASSY right, without cab, 3230, Serial Range: -JJE0910719

1шт.

6

180498A1

PIPE

TUBE ASSY right, without cab, 3230, Start Serial: JJE0910720

1шт.

6

99752C5

PIPE

TUBE ASSY right, with cab, 3230

1шт.

7

1500309C1

SUPPORT

BRACKET ASSEMBLY front power steering pipes, 3220

1шт.

7

1500311C2

FIXING BRACKET

BRACKET ASSEMBLY front power steering pipes, 3230

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

10

529644R11

CLAMP

tube

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

529644R11

CLAMP

tube

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE rubber 2-1/2 inches, Order 87086C1 and, Serial Range: cut-length

2шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

15

95-11028

WASHER,1/4"

flat, 9/32 x 5/8 x 1/16 inch

1шт.

16

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch

1шт.

18

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16 - 18 inch flare x bulkhead flare, 0.375MJ 0.375MJ, Serial Range: -JJE0910719

2шт.

18

218-5015

HYD CONNECTOR,7/16" - 20 Male ORB x 1/8" Male NPTF

FITTING reducing, steel, 1/4 x 1/8 inch, Start Serial: JJE0910720

2шт.

19

93-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER internal tooth lock, 5/8 inch

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT hex, lock, bulkhead, 9/16 inch NF

2шт.
