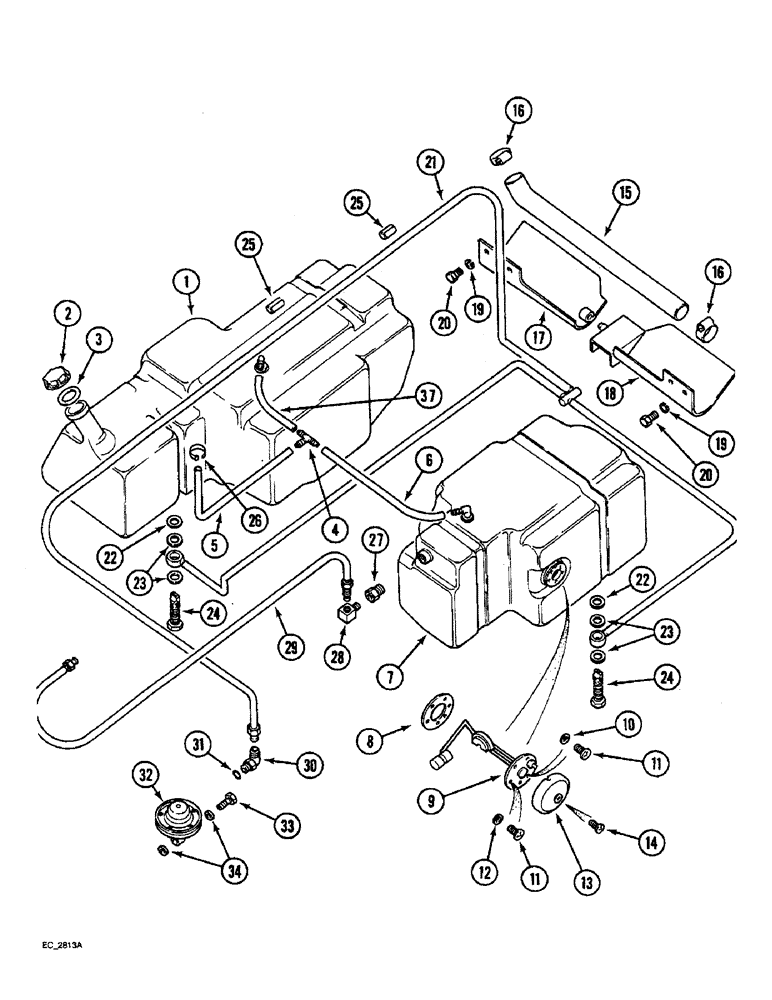

Запчасти Case IH 3220 (3-028) - FUEL TANK AND FUEL LINES, TRACTOR WITH CAB (03) - FUEL SYSTEM

1

1500252C94

TANK

ASSEMBLY fuel, Includes Ref. 2 and 3

1шт.

2

255345A1

PLUG

CAP fuel filler, oversize

1шт.

2

1500254C1

CAP

ASSEMBLY fuel filler, Includes Ref. 3

1шт.

3

140756A1

GASKET

fuel, cap

1шт.

4

1500292C1

UNION

TEE hose, Serial Range: -JJE0914621

1шт.

5

1500288C1

HOSE

breather, Serial Range: -JJE0914621

1шт.

5

225016A1

HOSE

breather, 750 mm, Start Serial: JJE0914622

2шт.

6

1500290C1

HOSE

breather, Serial Range: -JJE0914621

1шт.

7

1500251C2

TANK

ASSEMBLY fuel

1шт.

8

528359R3

GASKET

sending unit

1шт.

9

134122A1

SENDER UNIT

TRANSMITTER sender, fuel level

1шт.

10

796002R1

COPPER WASHER

WASHER copper

1шт.

11

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

machine, pan head Phillips, No. 10 NF x 3/8 inch

5шт.

12

495-31022

WASHER,#10

5шт.

13

134124A1

CAP

COVER sending unit

1шт.

14

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #6 x 3/4"

1шт.

15

1500325C1

FUEL HOSE,30.00 mm ID x 410.00 mm, SAE 30R1

Fuel Tank Balance 30.00 mm ID x 410.00 mm, SAE 30R1

1шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

17

82721C1

GUARD

SHIELD fuel balance pipe

1шт.

18

82723C1

GUARD

SHIELD fuel balance pipe

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

4шт.

21

99795C2

PIPE

fuel feed to fuel filter

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

1282576C1

RING

sealing, 14 x 22 mm

4шт.

24

1500329C1

BOLT,74mm

banjo

2шт.

25

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP tie, 7 inch

1шт.

27

1500333C1

ADAPTER,3/8"-18 NPT Fem x M14 x 1.5 Male

fuel return pipe

1шт.

28

528929R1

CHECK VALVE

VALVE check

1шт.

29

99871C3

PIPE

ASSEMBLY fuel return

1шт.

30

218-5104

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/2" - 20 Male ORB

90 degree, 1/2-20 inch flare x Adj O-Ring boss

1шт.

32

1202938C92

FEED PUMP

PUMP ASSEMBLY hand primer

1шт.

33

1203398C1

BANJO BOLT

BOLT, BANJO

1шт.

34

1203399C1

SEALING WASHER

sealing

2шт.

37

1500291C1

HOSE

breather, Serial Range: -JJE0914621

1шт.

31

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
