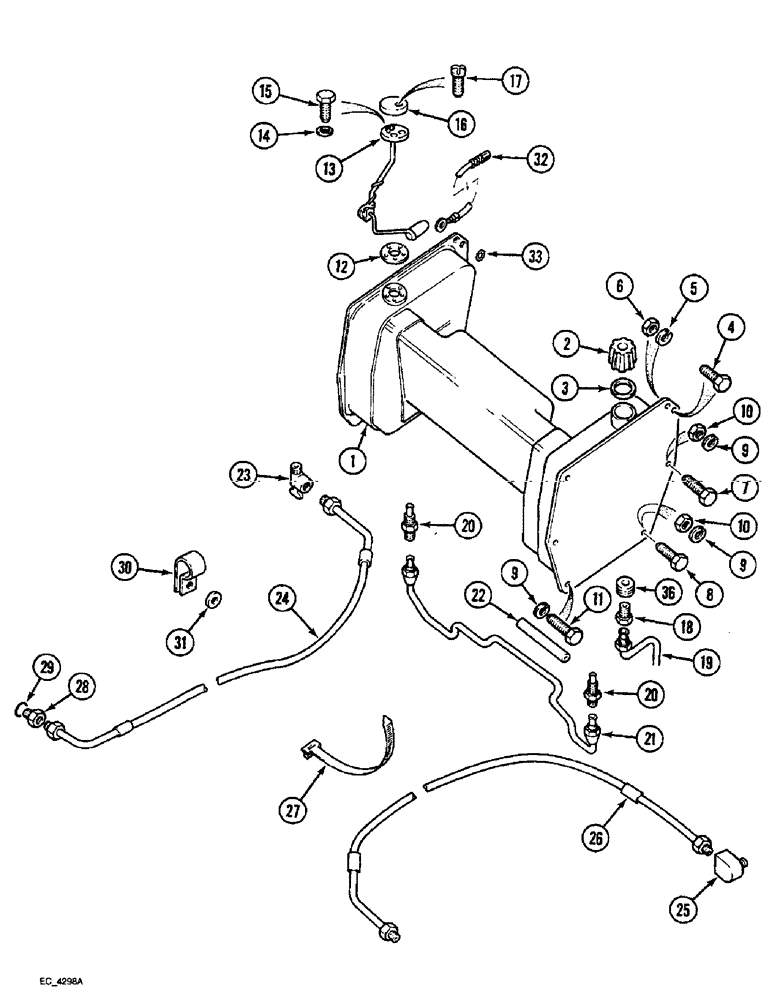

Запчасти Case IH 3220 (3-026) - FUEL TANK AND FUEL LINES, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

536035R94

FUEL TANK

TANK ASSEMBLY fuel, with filler cap, Includes Ref. 1, 2 and 3

1шт.

1

531125R4

FUEL TANK

TANK fuel, without filler cap

1шт.

2

538063R1

PLUG

CAP ASSEMBLY fuel tank filler

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel cap

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

6шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

528359R3

GASKET

sending unit

1шт.

13

143557A1

SENDER UNIT

TRANSMITTER fuel gauge, Warner

1шт.

14

533199R1

SEALING WASHER

sending unit cover

1шт.

14

796002R1

COPPER WASHER

WASHER copper

1шт.

15

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, No. 10 NC x 1/2 inch

1шт.

16

134124A1

CAP

COVER sending unit

1шт.

17

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #6 x 3/4"

1шт.

18

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

UNION connector, if equipped

1шт.

19

539938R1

VENTILATION PIPE

TUBE assembly, ventilation, if equipped

1шт.

20

1502069C1

PIPE

ASSEMBLY clearance

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE ASSEMBLY crossover

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE rubber, 10 inch, Order 87086C1 and, Serial Range: cut-length

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSEMBLY shut-off

1шт.

24

1536103C1

PIPE,8 mm OD, 2200, 42 mm Length

ASSEMBLY fuel return

1шт.

25

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

90 degree, 1/2-20 inverted flare x 1/8 inch PT

1шт.

26

106602A1

PIPE

TUBE ASSY. front, fuel return, with downswept exhaust

1шт.

26

1536098C1

FUEL HOSE,8 mm OD, 2340, 40 mm Length

ASSEMBLY front, fuel return

1шт.

27

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP tie, 7 inch

3шт.

28

3056600R1

ADAPTER

ADAPTOR filter

1шт.

29

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

30

316433C1

CLAMP

CLIP cable, 0.50 diameter, if equipped

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If equipped

1шт.

32

143556A1

CABLE

, Serial Range: gauge-fender

1шт.

33

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

36

538393R1

FILLER CAP

PLUG hex socket, 1/8 inch NPTF

1шт.
