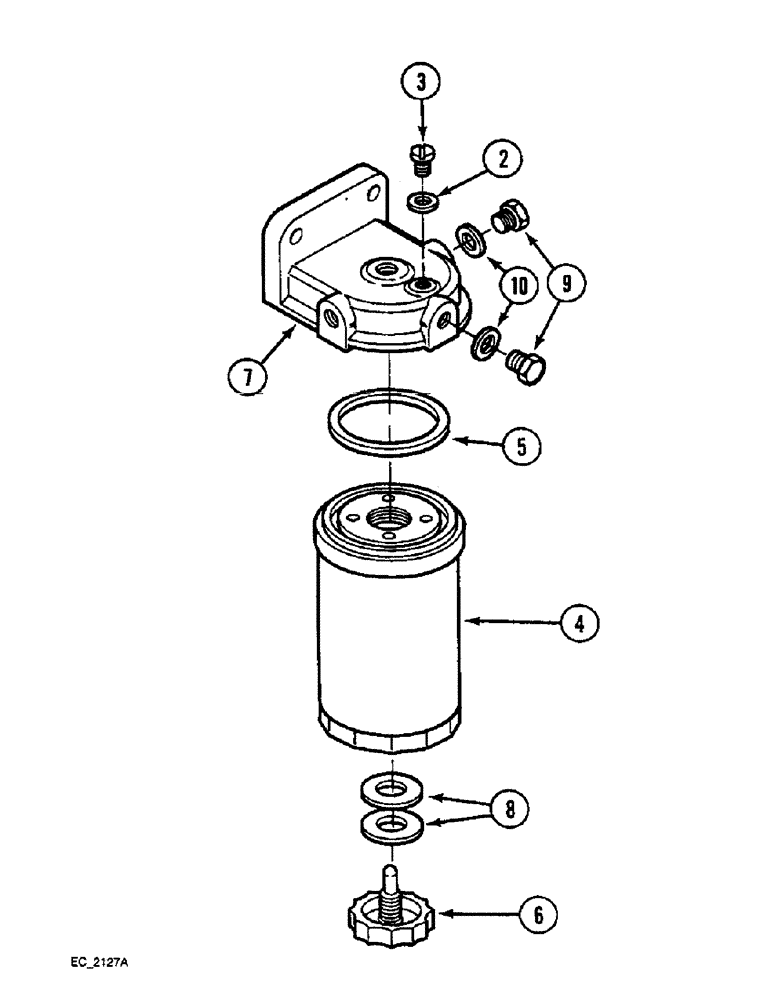

Запчасти Case IH 3220 (3-006) - FUEL FILTER, (3220) (03) - FUEL SYSTEM

3132452R92

FILTER

fuel, Includes Ref. 2 - 10

2шт.

2

933696R1

SEALING RING,M6 x 10 x 1

RING packing, 6 x 10 mm

1шт.

3

3144780R1

SCREW

air vent

1шт.

4

1967094C1

FUEL FILTER

ELEMENT filter fuel

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

6

3228407R1

PLUG

drain, 7.8 mm

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG drain, for champion filter, Order filter 3132452R92

1шт.

7

3132198R2

COVER

HEAD filter

1шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

Filler Hex, M14 x 1.5

2шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.
