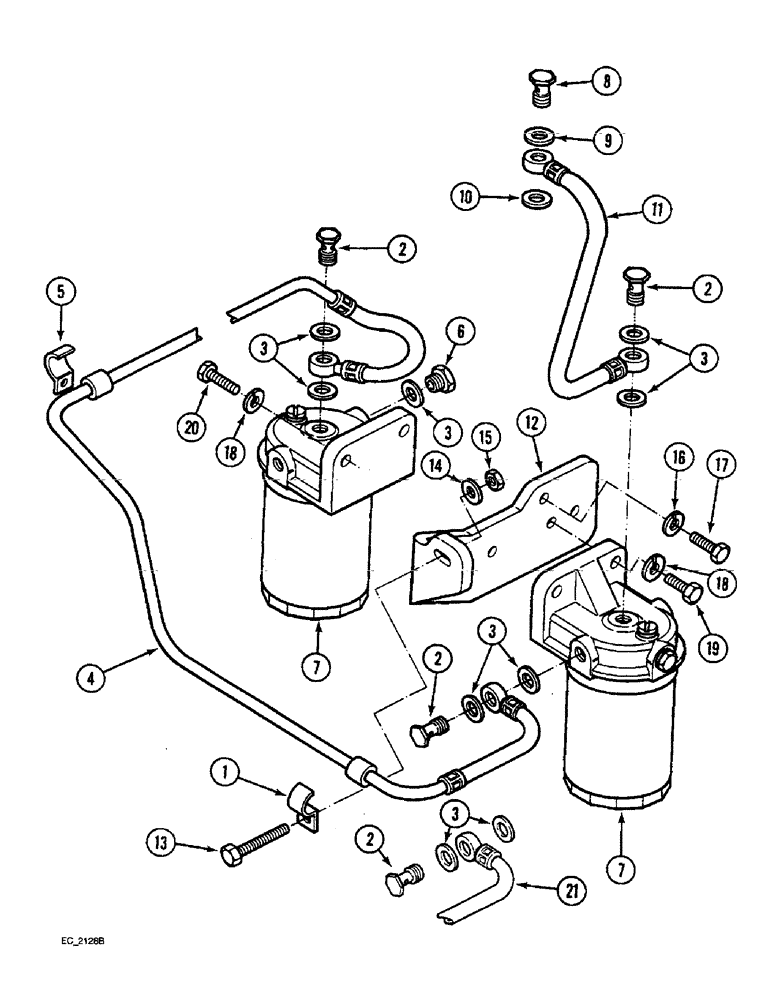

Запчасти Case IH 3220 (3-004) - FUEL FILTERS AND CONNECTIONS, (3220) (03) - FUEL SYSTEM

1

3056927R2

CLAMP

CLIP fuel line

1шт.

2

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

3шт.

3

933610R1

SEALING RING,M14 x 18 x 1.8

7шт.

4

3228065R1

FUEL HOSE

1шт.

5

711733R1

CLIP

fuel line

1шт.

6

3056600R1

ADAPTER

ADAPTOR filter

1шт.

7

REF

INSTRUCTION

FILTER fuel, See figure 3-006

2шт.

8

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW hollow

1шт.

9

E135042

SEALING RING

RING packing, 12 x 15.5 mm

1шт.

10

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

11

3132324R1

HOSE,8mm ID x 275mm L

PIPE fuel

1шт.

12

1329085C1

SUPPORT

BRACKET fuel filter

1шт.

13

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

1шт.

14

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

18

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

4шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

20

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

21

1530630C1

FUEL HOSE

(Used When Only One Filter Fitted)

1шт.
