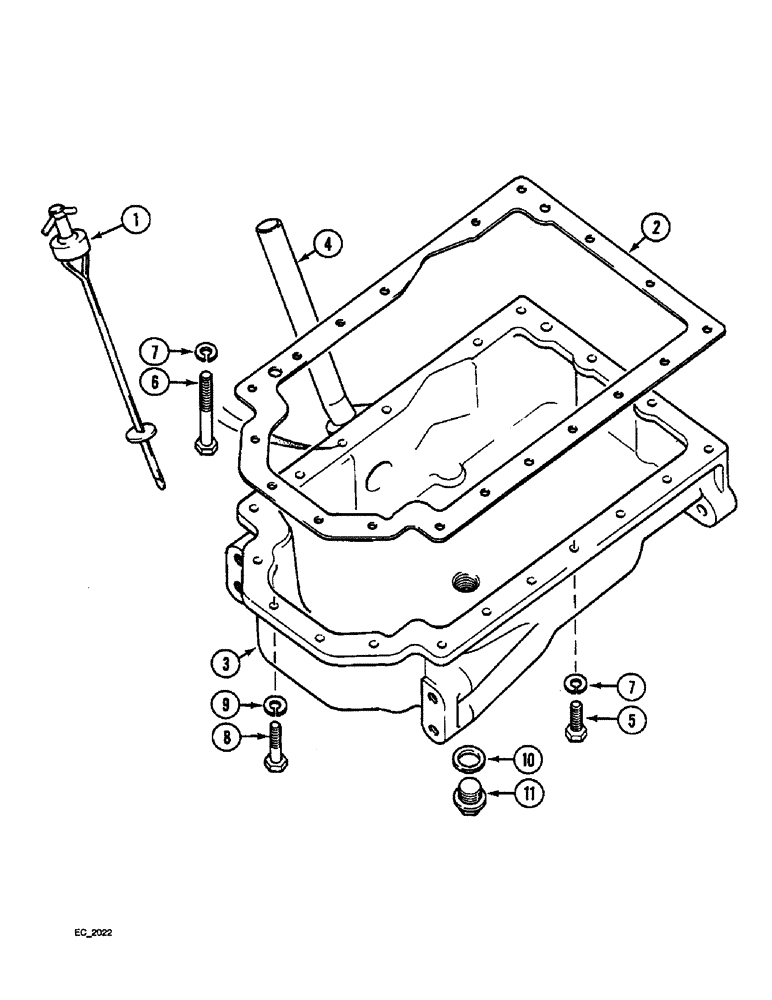

Запчасти Case IH 3220 (2-074) - OIL PAN, (3220) (02) - ENGINE

1

1329040C3

DIPSTICK,260mm L

GAUGE oil level

1шт.

2

3055160R3

OIL PAN GASKET SET

oil pan

1шт.

3

1806866C91

PAN, ENGINE OIL

PAN oil, Includes Ref. 4

1шт.

4

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE oil fill

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

11шт.

5

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

6

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

8

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch

4шт.

9

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

10

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

11

3132544R2

PLUG

filler

1шт.
