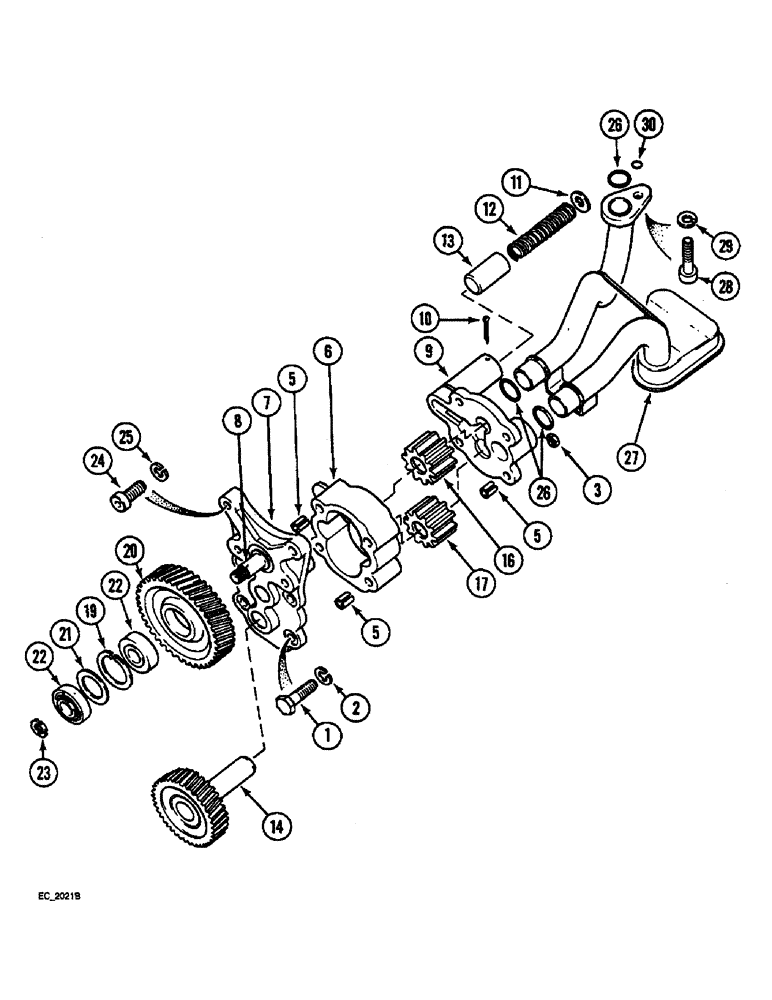

Запчасти Case IH 3220 (2-072) - OIL PUMP (02) - ENGINE

3136429R95

PUMP, ENGINE OIL

PUMP ASSY. oil, 3220

1шт.

3136430R95

PUMP, ENGINE OIL

PUMP ASSEMBLY oil, 3230, Includes Ref. 1 - 23

1шт.

1

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

3220 Hex, 5/16"-18 x 1 5/8", G5

4шт.

1

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch, 3230

4шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

3136435R95

HOUSING ASSY.

CARRIER ASSY. oil pump, 3220

1шт.

3136441R95

HOUSING ASSY.

CARRIER ASSY., 3230, Includes Ref. 5 - 13

1шт.

5

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

6

NSS

NOT SOLD SEPARAT

CASE oil pump gear

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER oil pump gear

1шт.

8

3055297R5

AXLE

idler gear

1шт.

9

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY oil pump, Includes Ref. 10 - 13

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

11

3139620R1

SPRING WASHER

spring

1шт.

12

3136264R1

SPRING

pressure relief valve

1шт.

13

3136081R1

VALVE

piston relief

1шт.

14

3136437R91

PINION

GEAR ASSY. oil pump drive, 3220

1шт.

14

3136442R91

PINION

GEAR oil pump drive, 3230

1шт.

3136440R91

GEAR-SET

GEAR set, oil pump, 3220

1шт.

3132503R91

GEAR-SET

GEAR set, 3230, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR oil pump idler

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR oil pump

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY oil pump idler, Order component parts, Includes Ref. 19 - 22

1шт.

19

800-2135

SNAP RING,M35, Int

RING retaining internal, 35 mm

1шт.

20

3055291R1

PINION

GEAR idler

1шт.

21

3055292R1

WASHER

WASHER

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING taper roller, Order 476045R91 and 476046R1

2шт.

23

3228141R1

LOCK NUT

lock

1шт.

24

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

4шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

oil pump sealing

1шт.

27

1806888C1

PIPE ASSY.

PIPE ASSY oil, pressure, 3220

1шт.

27

1806778C1

PIPE ASSY.

PIPE oil, 3230

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

28

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

BOLT hex, 7/16 x 3-3/4 inch

1шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 3220 5/16"

1шт.

29

3218543R1

LOCK WASHER

lock, 7/16 inch, 3220

1шт.

30

717222R1

O-RING

sealing, 11.3 x 16.1 mm, 3230

1шт.
