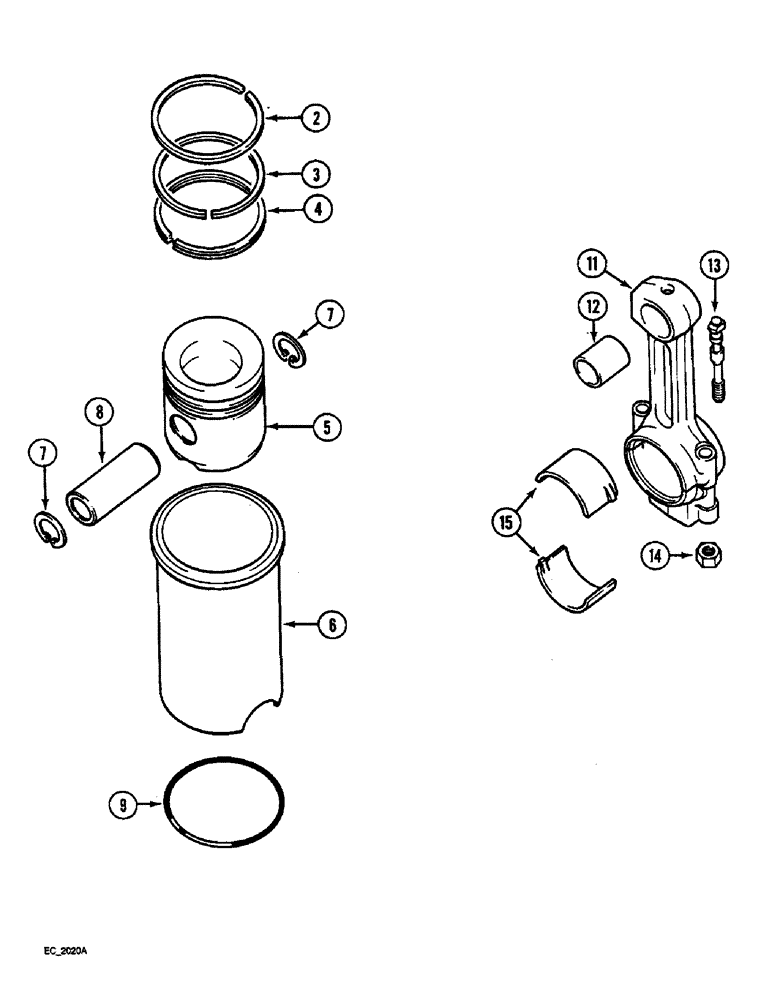

Запчасти Case IH 3220 (2-070) - PISTONS AND SLEEVES (02) - ENGINE

3218759R95

SLEEVE ASSY

PISTON ASSEMBLY engine, 3220

3шт.

3218758R95

SLEEVE ASSY

PISTON with sleeve, 3230, Includes Ref. 2 - 8

4шт.

3218416R92

PISTON RING SET

KIT piston ring, Includes Ref. 2, 3 and 4

1шт.

For Keystone Ring Set Order 3139594R91

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, first, Order set 3218416R92

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, second, Order set 3218416R92

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil control, Order set 3218416R92

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

6

3139587R3

SLEEVE CYLINDER

3230

1шт.

6

3139592R4

SLEEVE CYLINDER

3220

1шт.

7

800-2136

SNAP RING,M36, Ext

RING snap

2шт.

8

3055217R2

PISTON PIN

PIN piston

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

cylinder sleeve, 3220

3шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

cylinder sleeve, 3230

4шт.

1967032C1

CONNECTING ROD

ROD ASSEMBLY connecting, 3220

3шт.

1967029C1

CONNECTING ROD

ROD ASSEMBLY connecting, 3230, Includes Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

1шт.

13

3055033R1

BOLT

BOLT connecting rod, Includes Ref. 14

2шт.

14

3055034R1

NUT

rod bolt

2шт.

15

3055351R91

BEARING ASSY

BEARING connecting rod

4шт.
