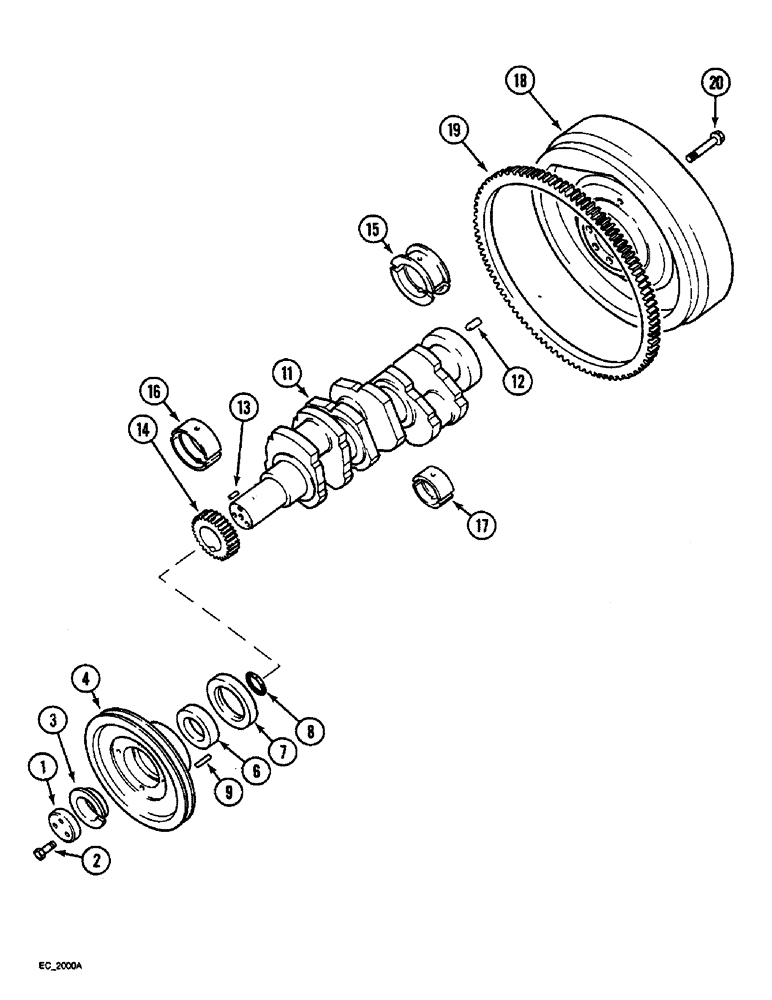

Запчасти Case IH 3220 (2-066) - CRANKSHAFT AND BEARINGS, (3220), FLYWHEEL (11 INCH CLUTCH), FLYWHEEL (12 INCH CLUTCH) (02) - ENGINE

1

3055154R1

WASHER

pressure

1шт.

2

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

hex, 7/16 NC x 1-3/8 inch

3шт.

3

3138874R1

BEARING WASHER

RING clamping

1шт.

4

1808484C1

PULLEY

crankshaft

1шт.

3228133R93

SEAL KIT

KIT service, Includes Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER distance

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL crankshaft front

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm

1шт.

9

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

9

932224R1

DOWEL,M4 x 32, Oval

PIN dowel, 4 x 32 mm

1шт.

9

932652R1

DOWEL,4mm OD x 28mm L

PIN dowel, 4 x 28 mm

1шт.

1329193C1

CRANKSHAFT BEARING

with bearings, Includes Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT ASSEMBLY standard, Includes Ref. 12, 13 and 14

1шт.

12

NLS

NO LONGER SERVICED

PIN dowel, 3/8 x 7/8 inch

1шт.

13

838-5410

LOCK PIN,M4 x 10, Slotted

PIN slotted spring, 4 x 10 mm

1шт.

14

3055028R1

PINION

GEAR crankshaft pinion, 33 teeth

1шт.

15

3055129R21

CRANKSHAFT BEARING

BEARING main

1шт.

16

3055130R21

CRANKSHAFT BEARING

BEARING main

3шт.

17

3055351R91

BEARING ASSY

BEARING connecting rod

3шт.

18

3144614R95

FLYWHEEL WITH GEAR

FLYWHEEL ASSY. engine, 11 inch clutch, Includes Ref. 19

1шт.

19

60883H

RING GEAR

GEAR ring, 11 inch clutch

1шт.

20

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel

7шт.

18

1329084C1

ENGINE FLYWHEEL

FLYWHEEL ASSY. engine, 12 inch clutch, Includes Ref. 19

1шт.

19

60883H

RING GEAR

GEAR ring, 12 inch clutch

1шт.

20

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel mounting, 12 inch clutch

7шт.
