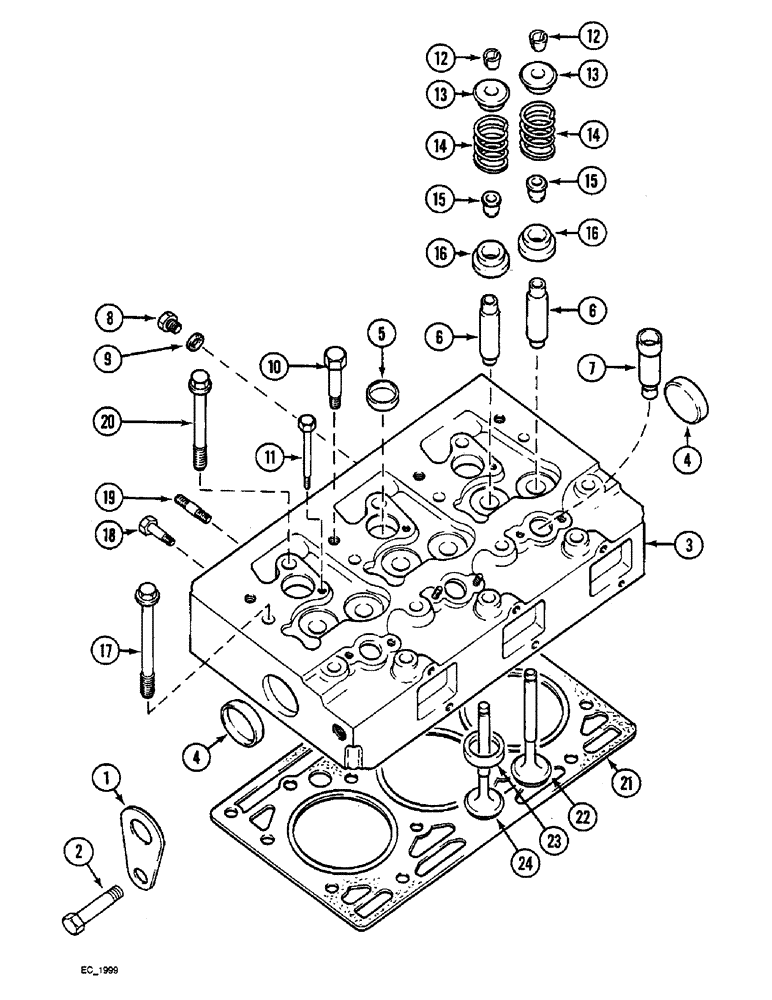

Запчасти Case IH 3220 (2-046) - CYLINDER HEAD, (3220) (02) - ENGINE

1

3055370R1

STIRRUP

SHACKLE engine mounting

1шт.

2

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

3

3055366R96

HEAD (CYLINDER)

HEAD ASSY. cylinder, Includes Ref. 4 - 7

1шт.

4

934003R1

PLUG,M52, Conical

expansion

2шт.

5

30591R1

PLUG,M25, Tapered

tapered cup, 25 mm OD

3шт.

6

129322A1

GUIDE

valve stem

6шт.

7

3055344R1

SLEEVE

INSERT nozzle holder

3шт.

8

934259R1

PLUG,Hex, M10 x 1

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

10

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

4шт.

11

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

hex, 5/16 NC x 4-1/2 inch

2шт.

12

3055057R91

ROCKER ARM COTTER

LOCK valve spring

12шт.

13

3055058R2

SPRING CUP

CAP valve spring retainer

6шт.

14

3055060R1

SPRING

valve

6шт.

15

3218399R91

GASKET KIT

KIT valve stem seal

6шт.

16

3055059R91

CAP

ROTATOR valve

6шт.

17

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT hex

8шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

19

3228189R1

STUD

exhaust manifold, 3/8 x 1-1/2 inch, without coolant filter

6шт.

19

3228189R1

STUD

exhaust manifold, 3/8 x 1-1/2 inch, with coolant filter

4шт.

19

3228188R1

STUD

exhaust manifold, with coolant filter

2шт.

20

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

hex

6шт.

21

3228361R2

CYLINDER HEAD GASKET

cylinder head

1шт.

22

3055055R2

OVERSIZE INLET VALVE

VALVE intake

3шт.

23

3132361R1

INSERT

seat, 0.016 inch oversize

3шт.

23

3132362R1

VALVE SEAT

INSERT seat, 0.006 inch oversize

3шт.

24

3055056R2

STD EXHAUST VALVE

VALVE exhaust

3шт.
