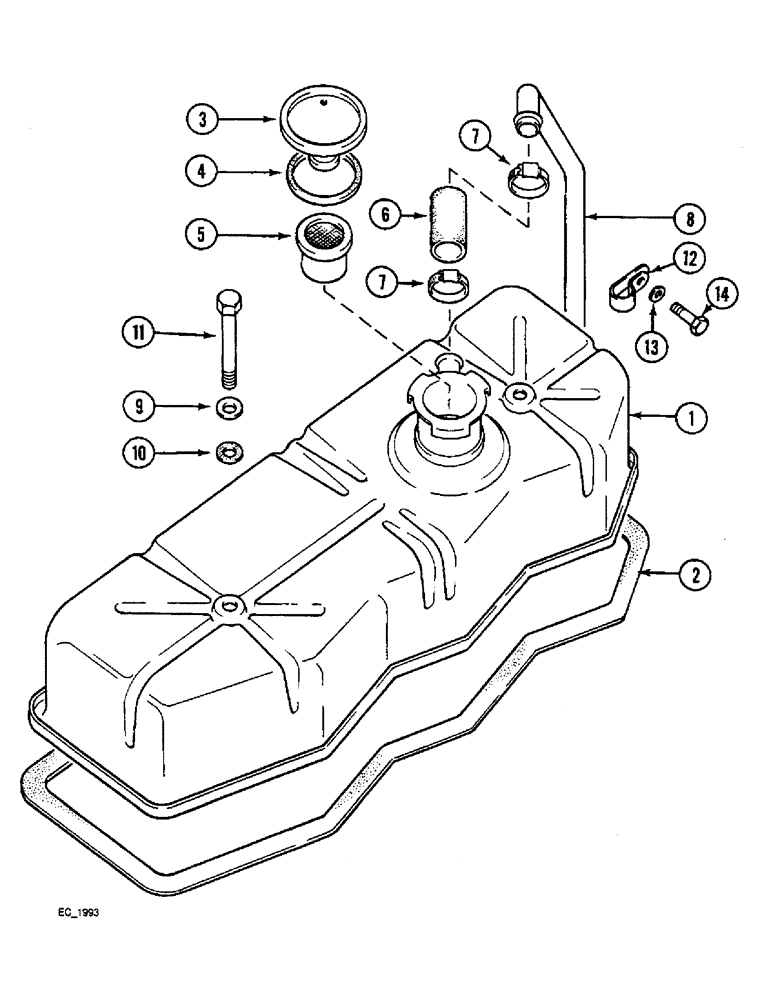

Запчасти Case IH 3220 (2-042) - VALVE HOUSING COVER, (3220) (02) - ENGINE

1

3136358R13

COVER

valve housing

1шт.

2

3138641R1

GASKET

valve housing cover

1шт.

3

3136337R91

COVER

CAP oil fill

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

breather cap

1шт.

5

3136336R1

FILTER

INSERT strainer

1шт.

6

1806928C1

HOSE

connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

hose

2шт.

8

1806921C2

TUBE,18 mm OD

breather

1шт.

9

3138637R1

CUP WASHER

WASHER valve housing cover

2шт.

10

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve housing cover bolt

2шт.

11

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

hex, 5/16 NC x 4-1/2 inch

2шт.

12

1808195C1

CLAMP

breather tube

1шт.

13

396-21059

WASHER,0.59" ID x 1.19" OD x 0.13" Thk

flat, hardened, 9/16 In.

1шт.

14

25827R1

BOLT,Hex, 9/16" - 12 x 1", Gr 8

hex, 9/16 x 25 mm

1шт.
