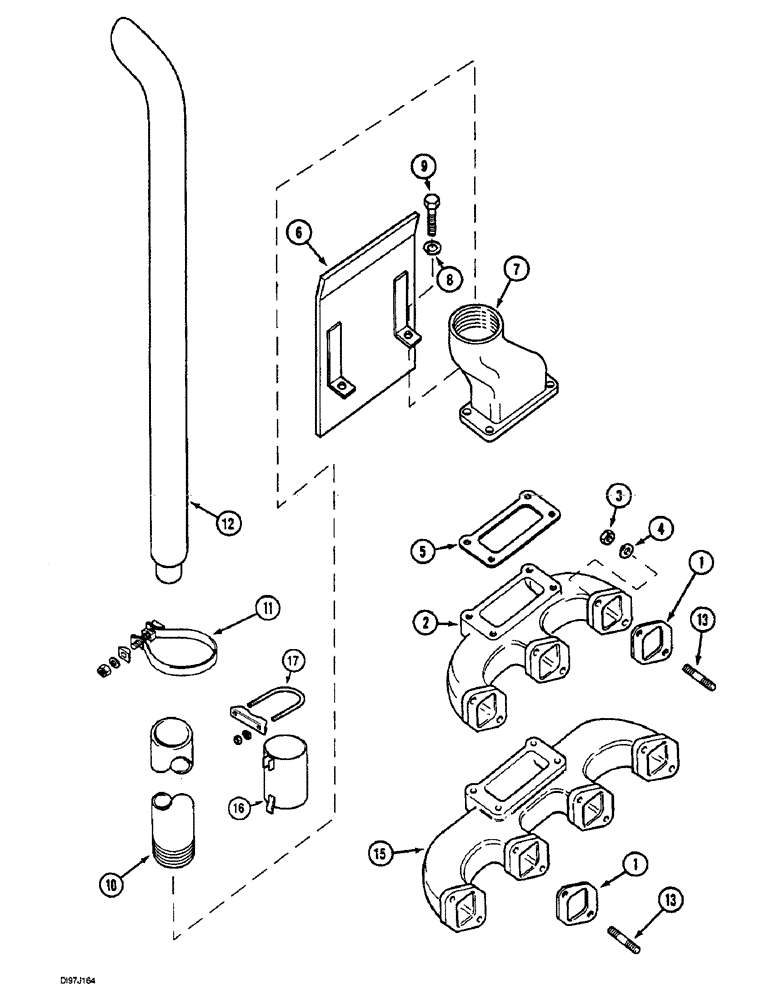

Запчасти Case IH 3220 (2-036) - VERTICAL EXHAUST (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

1шт.

2

3121373R3

MANIFOLD

exhaust, 3220

1шт.

3

425-116

NUT,3/8" - 24, Gr 5

hex, 3/8 inch NF

1шт.

4

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

1шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

1шт.

6

137666A1

PROTECTION PLATE

BAFFLE heat, shield

1шт.

7

136174A3

ELBOW

exhaust manifold

1шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

10

139536A2

TUBE

PIPE exhaust

1шт.

10

246683A1

TUBE,12-9/32" Length

PIPE exhaust mounting, short, version with lift-off muffler

1шт.

10

246900A1

TUBE,12-9/32" Length

PIPE exhaust mounting, long, version with lift-off muffler

1шт.

11

177813A1

CLAMP,65.9mm - 68.3mm

tail, Serial Range: pipe-muffler

1шт.

12

137278A1

MUFFLER

exhaust, with cab

1шт.

12

139138A1

MUFFLER

exhaust, without cab

1шт.

12

251846A1

MUFFLER

short, version with lift-off muffler

1шт.

12

251843A1

MUFFLER

long, version with lift-off muffler

1шт.

13

REF

INSTRUCTION

STUD exhaust manifold, See figure 2-046 and 2-048

8шт.

15

3136066R12

MANIFOLD ASSY

MANIFOLD exhaust, 3230

1шт.

16

252391A1

GUARD

SLEEVE, version with lift-off muffler, Replaces 252319A1

1шт.

17

1502294C1

CLAMP

muffler, version with lift-off muffler

1шт.
