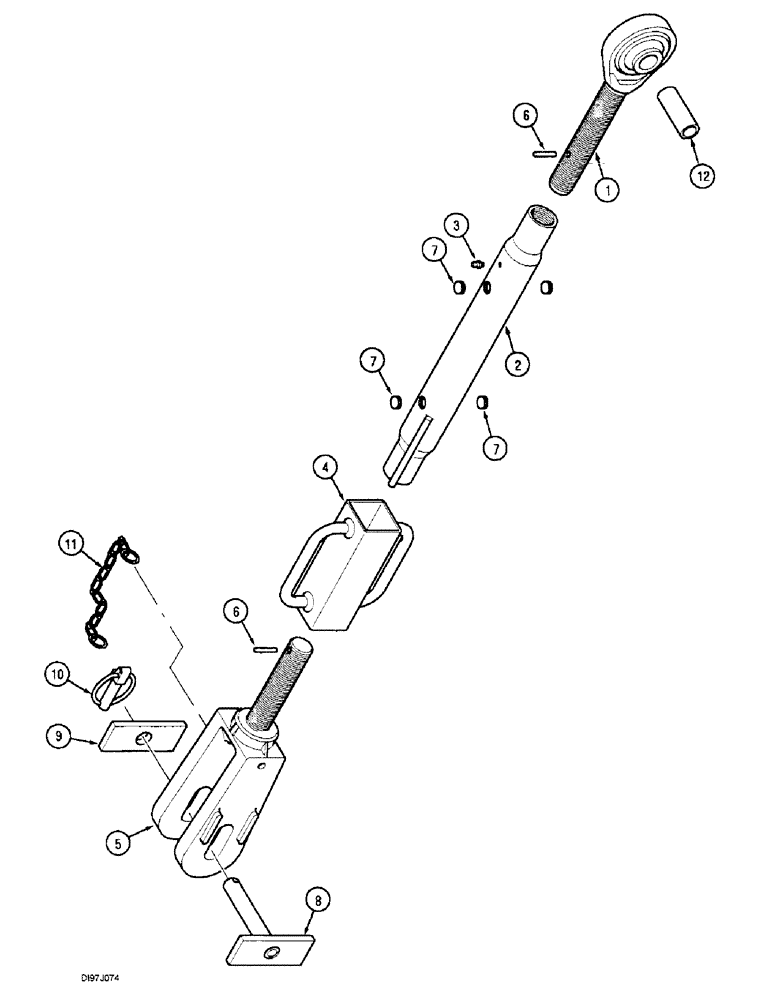

Запчасти Case IH 3220 (9-102) - THREE POINT HITCH, HEAVY DUTY LIFT LINKS, 27 MM (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY lower link, Includes Ref. 1 - 12

2шт.

1

226113A1

LIFT LINK END ASSY,M27 x 2

ROD ASSEMBLY lift link, upper

1шт.

2

226114A1

TUBE,M27 x 2

lift link, turnbuckle

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING grease, straight, 1/4 drive type x 9/16 inch

1шт.

4

226115A1

HANDLE

lift link, turnbuckle

1шт.

5

226116A1

FORK,M27 x 2

ASSEMBLY lift link, lower 27 mm

1шт.

6

838-5528

LOCK PIN,M5 x 28, Slotted

PIN spring, slotted, 5 x 28 mm

2шт.

7

1965426C1

PLUG

cup

4шт.

8

226117A1

PIN

lift link, lower

1шт.

9

226118A1

LARGE PLATE

PLATE lift link pin, 1

1шт.

10

179891A1

PIN,7.5mm OD

PIN ASSEMBLY retaining, Includes Ref. 11 and 12

1шт.

11

1982154C2

CHAIN,Assembly, Lift Link

CHAIN klik pin

1шт.

12

243053A1

BUSHING,15.95mm ID x 20mm OD x 50mm L

lift link, upper

1шт.

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY lower link, Includes Ref. 1 - 12

2шт.

1

226113A1

LIFT LINK END ASSY,M27 x 2

ROD ASSEMBLY lift link, upper

1шт.

2

226114A1

TUBE,M27 x 2

lift link, turnbuckle

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING grease, straight, 1/4 drive type x 9/16 inch

1шт.

4

226115A1

HANDLE

lift link, turnbuckle

1шт.

5

226120A1

FORK,M27 x 2

ASSEMBLY lift link, lower 42 mm

1шт.

6

838-5528

LOCK PIN,M5 x 28, Slotted

PIN spring, slotted, 5 x 28 mm

2шт.

7

1965426C1

PLUG

cup

4шт.

8

226122A1

PIN

lift link, lower

1шт.

9

226118A1

LARGE PLATE

PLATE lift link pin, 1

1шт.

10

179891A1

PIN,7.5mm OD

PIN ASSEMBLY retaining, Includes Ref. 11 and 12

1шт.

11

1982154C2

CHAIN,Assembly, Lift Link

CHAIN klik pin

1шт.

12

243053A1

BUSHING,15.95mm ID x 20mm OD x 50mm L

lift link, upper

1шт.
