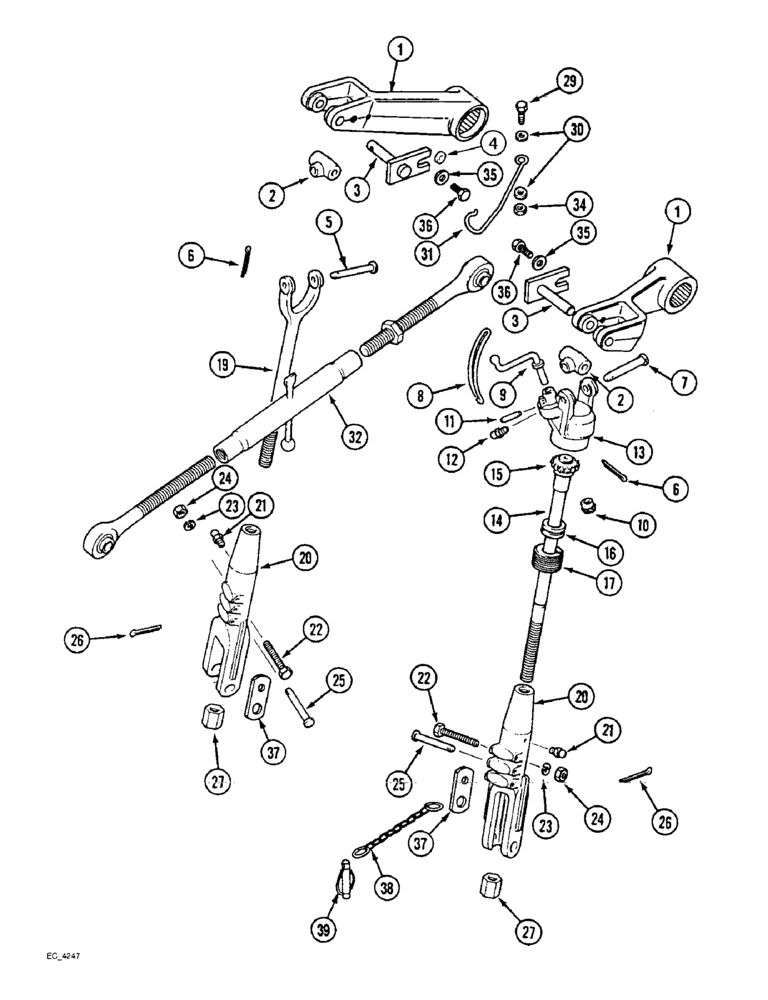

Запчасти Case IH 3220 (9-100) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

114724A1

ROCKER ARM

ARM rockshaft

1шт.

2

704207R3

PIVOT

SWIVEL levelling screw

2шт.

3

114752A1

HITCH PIN,15.87mm OD x 121mm L

PIN rockshaft arm

2шт.

4

1331994C1

SPACER

1/2 inch

2шт.

5

3044309R2

HEADED PIN

PIN headed

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

2шт.

7

3069069R2

HEADED PIN

PIN headed, 5/8 x 3-3/4 inch

1шт.

8

3072424R1

SPRING

levelling screw handle

1шт.

9

527943R1

CRANK

CRANK levelling

1шт.

9

3118015R1

CRANK

HANDLE levelling screw

1шт.

10

3069063R1

GEAR

pinion

1шт.

11

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

13

3072422R2

HOUSING

levelling screw

1шт.

14

3116725R91

SCREW

SCREW levelling, Includes Ref. 15

1шт.

15

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

bearing

1шт.

16

3068049R91

BALL BEARING

BEARING levelling screw

1шт.

16

139633A1

BALL BEARING,25 mm ID x 47 mm OD x 15 mm

levelling screw, optional to 3068049R91

1шт.

17

3069064R2

SUPPORT,25.43mm ID x 57.15mm OD x 33.27mm L

BEARING levelling screw

1шт.

19

527948R91

CLEVIS,7/8" - 9

YOKE ASSEMBLY lift link

1шт.

19

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

20

3121964R4

HOUSING

lift link yoke, without telescopic lower links

2шт.

20

3121965R3

END

HOUSING lift link yoke, with telescopic lower links

2шт.

21

219-14

LUBE NIPPLE,1/4" NPTF

FITTING grease, straight, 1/4 drive type x 9/16 inch

2шт.

22

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN float stop, if so equipped

2шт.

26

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), , If so equipped 3/32" x 5/8"

2шт.

27

527937R1

NUT

lift link

2шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

31

530050R5

SPRING CLIP

CLIP upper link storage

1шт.

32

REF

INSTRUCTION

LINK ASSEMBLY upper, See figure 9-102

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat

2шт.

37

128670A1

LARGE PLATE

STRAP housing

2шт.

1982152C2

PIN ASSY.

PIN left, link, Includes Ref. 38 and 39

2шт.

38

1982154C2

CHAIN,Assembly, Lift Link

CHAIN klik pin

2шт.

39

1982023C1

LINCH PIN,10.5mm OD

PIN linch, with chain

2шт.

36

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.
