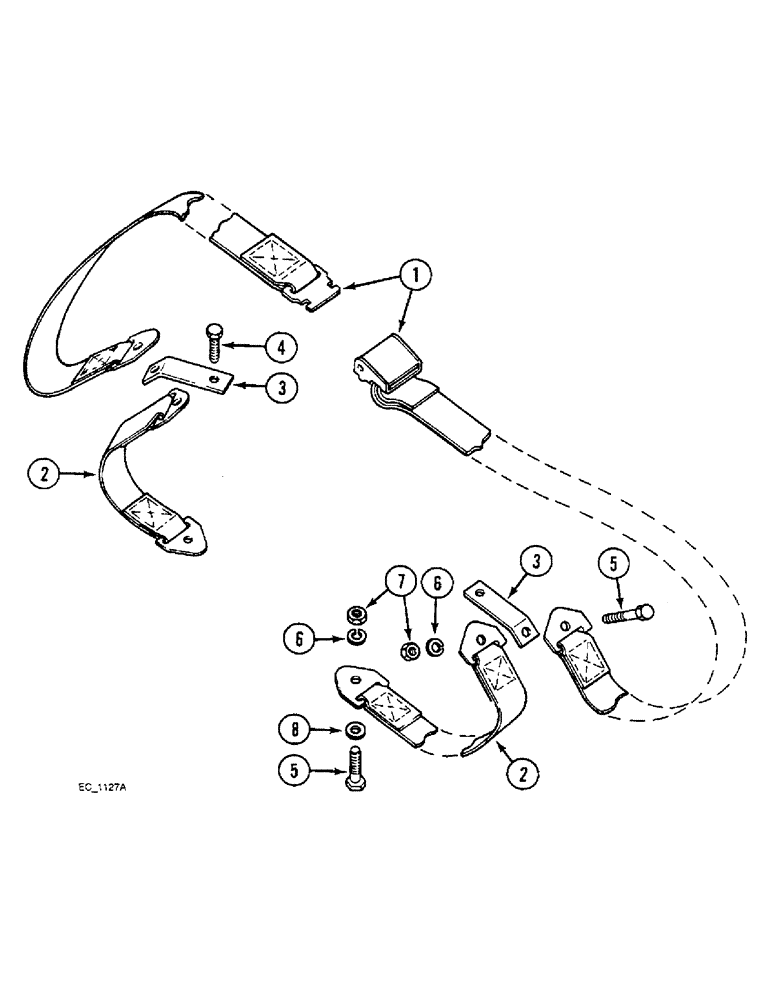

Запчасти Case IH 3220 (9-090) - SEAT BELT, TRACTOR WITHOUT CAB, STATIC SEAT (09) - CHASSIS/ATTACHMENTS

1

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retainer

2шт.

3

539259R1

CLIP

seat belt retainer

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

5

344096C3

BOLT

BOLT seat belt anchor

4шт.

6

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7

429-117

NUT,7/16"-20, G8

hex, 7/16 inch, grade 8

4шт.

8

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.
