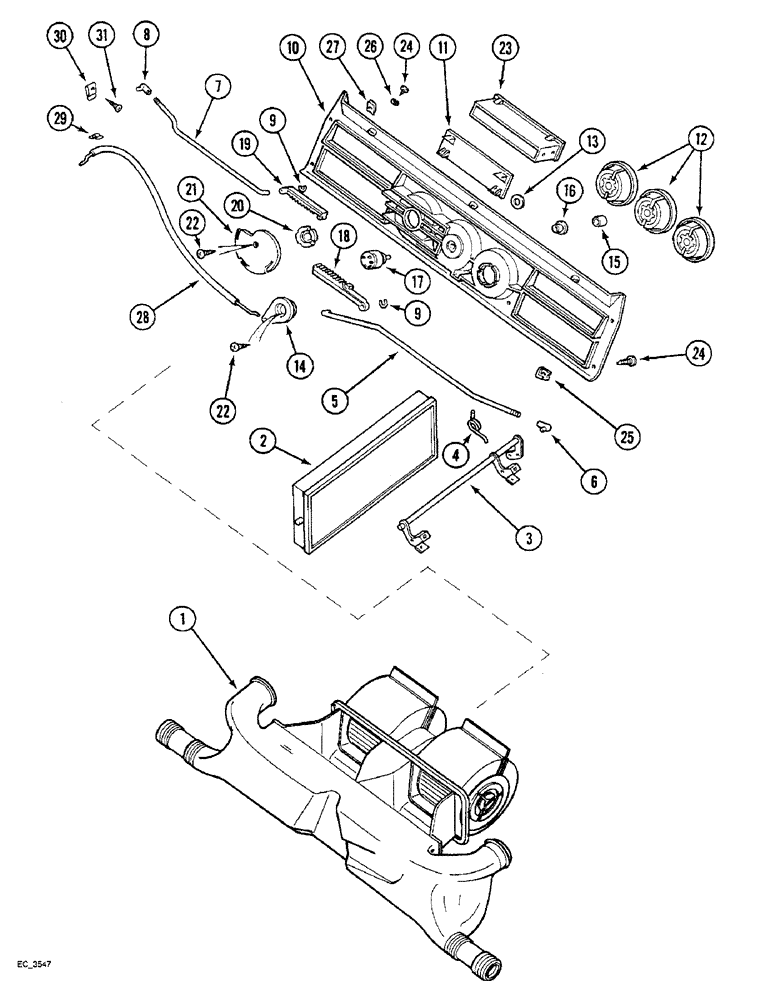

Запчасти Case IH 3220 (9-066) - CAB, HEATER CONTROLS (09) - CHASSIS/ATTACHMENTS

116773A1

CAB

complete with trim, without air conditioning, Includes Ref. 1 - 31

1шт.

1

REF

INSTRUCTION

HEATER ASSEMBLY heater

1шт.

2

3233584R2

CAB FILTER

FILTER air cleaner

1шт.

There are two air filters in the cab, one on the right and one on the left.

1шт.

3

3234202R91

SUPPORT

BRACKET flap assembly, left

1шт.

3

3234203R91

SUPPORT

BRACKET flap assembly, right

1шт.

4

3234192R1

SPRING

torsion, left

1шт.

4

3234193R1

SPRING

torsion, right

1шт.

3234199R91

ROD ASSY.

ROD assembly, left, Includes Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD operating, left

1шт.

6

3233279R1

BALL JOINT

JOINT ball

1шт.

3234198R91

LINKAGE

ROD ASSEMBLY operating, right, Includes Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROD operating, right

1шт.

8

3233279R1

BALL JOINT

JOINT ball

1шт.

9

933990R1

CIRCLIP,M4

RING retaining, external

2шт.

3234184R92

PANEL

ASSEMBLY heater control, Includes Ref. 10 - 22

1шт.

10

3233565R2

PANEL

switch

1шт.

11

1535219C1

COVER

PLATE cover, radio opening

1шт.

12

3233615R1

BUTTON

KNOB air conditioning control

3шт.

13

1332311C1

FRICTION WASHER

friction

1шт.

14

3233677R1

LEVER

control

1шт.

15

3233614R1

SPRING CLIP

CLIP spring

1шт.

16

3233661R1

SCREW

1шт.

17

3405693R1

BLOWER SWITCH

SWITCH blower

1шт.

18

3234182R1

GEAR RACK

RACK gear

1шт.

19

3234181R1

GEAR RACK

RACK gear

1шт.

20

3234183R1

GEAR

wheel

1шт.

21

3234180R1

ECCENTRIC

CAM eccentric

1шт.

22

766-34522

SCREW,Oval, M5.5 x 1.8 x 22mm

tapping, oval cross recess, 5.5 x 22 mm

2шт.

23

3233587R1

DIFFUSER

upper left

1шт.

23

3233588R1

DIFFUSER

upper right

1шт.

24

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW tapping oval cross recess, 4.2 x 19 mm

11шт.

25

3234214R1

SPRING NUT

spring

8шт.

26

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER lock, 4 mm

3шт.

27

3234191R1

SPRING NUT

spring

3шт.

28

3234197R1

CABLE

operating, heater water valve

1шт.

29

3233746R1

CLIP

cable

1шт.

30

3401582R1

SPRING NUT

lock

1шт.

31

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW pan head, 4.8 x 16 mm

1шт.
