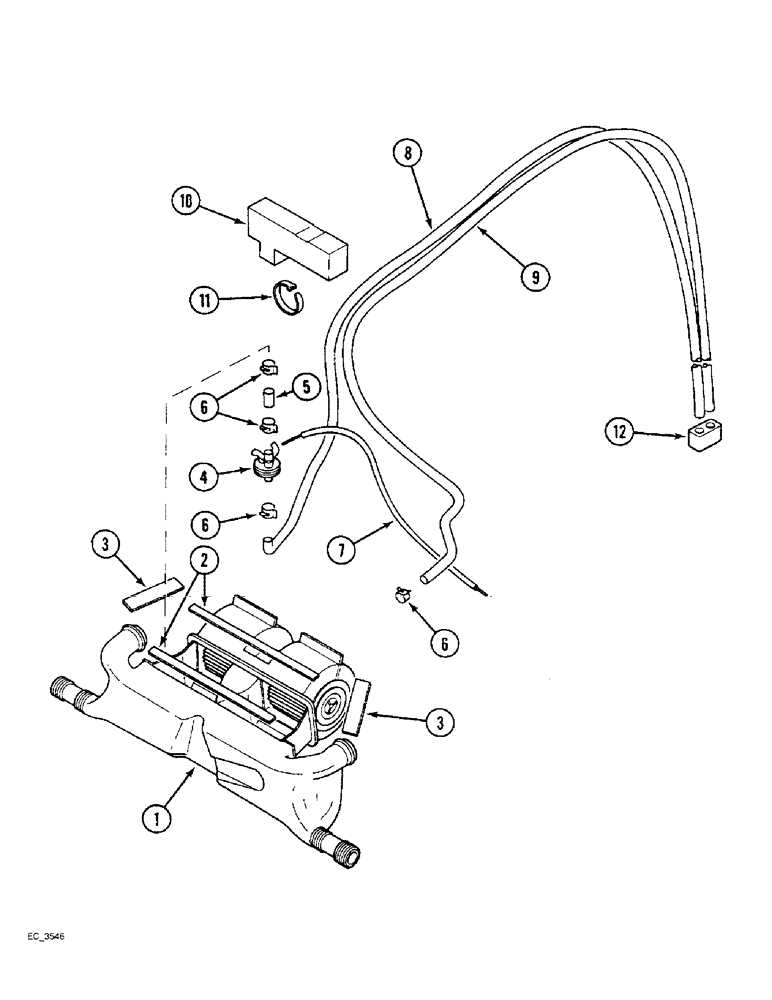

Запчасти Case IH 3220 (9-064) - CAB, HEATER PIPES (09) - CHASSIS/ATTACHMENTS

116773A1

CAB

complete with trim, without air conditioning, See figure 9-030, Includes Ref. 1 - 12

1шт.

1

REF

INSTRUCTION

HEATER ASSEMBLY heater, See figure 9-068

1шт.

2

3234097R1

SEALING STRIP

- Blower assy

2шт.

3

3234096R1

SEALING STRIP

blower assembly, See figure 9-030

2шт.

4

3234102R92

VALVE

heater control

1шт.

5

3234038R2

HEATER HOSE,15.50 mm ID x 41.00 mm

HOSE , Flexible 15.50 mm ID x 41.00 mm

1шт.

6

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

7

3234197R1

CABLE

operating, heater water valve

1шт.

8

3234103R2

HEATER HOSE,15.50 mm ID x 3000.00 mm

HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm

1шт.

9

3234104R2

HEATER HOSE,15.50 mm ID x 3340.00 mm

HOSE , Water Return 15.50 mm ID x 3340.00 mm

1шт.

10

3234122R1

SEALING STRIP

SEAL hoses

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

12

NSS

NOT SOLD SEPARAT

STRIP filling 4 inch, Order 146793C1 and, Serial Range: cut-length

1шт.

146793C1

SEAL

STRIP filling, bulk length

1шт.
