(2-026) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3220)

Запчасти Case IH 3220 (2-026) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3220) (02) - ENGINE

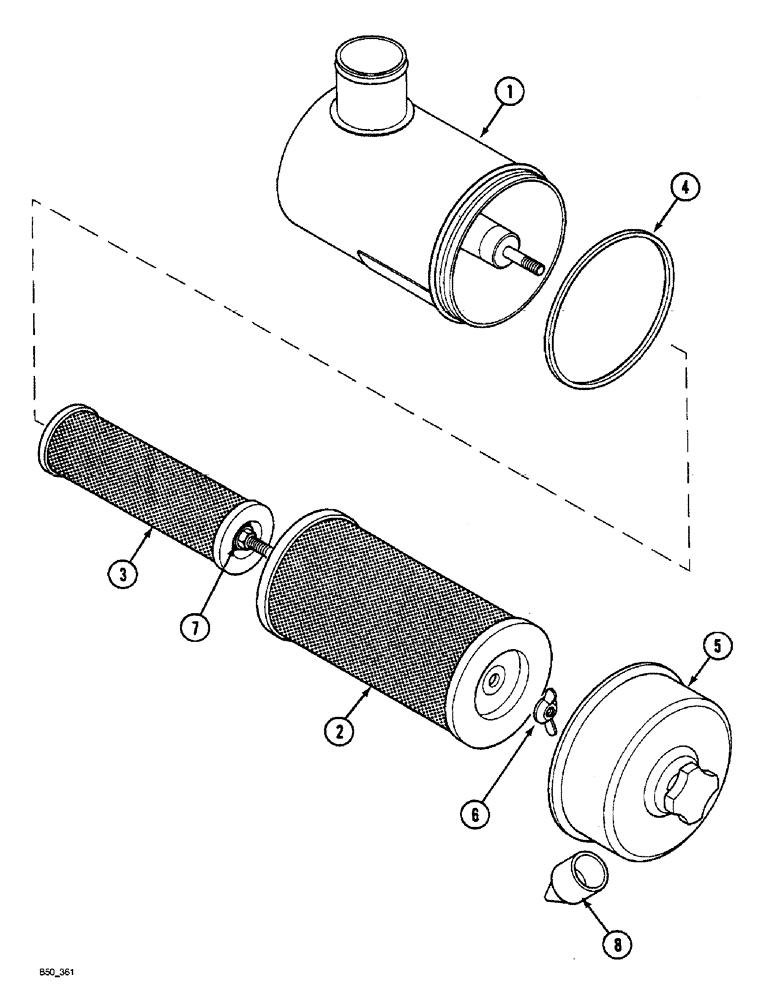

Схема запчастей Case IH 3220 - (2-026) - AIR CLEANER, COOPERS WITH SAFETY ELEMENT, (3220) (02) - ENGINE
3
8
6
5
7
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125248R95

AIR CLEANER

CLEANER air, Coopers No. SK15235, Includes Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY

1шт.

2

1265510C1

AIR FILTER

ELEMENT primary

1шт.

3

3115569R2

AIR FILTER

ELEMENT secondary

1шт.

4

1900091C1

GASKET

air cleaner

1шт.

5

3125200R2

COVER ASSY

COVER air cleaner

1шт.

6

3124435R1

NUT

NUT wing

1шт.

7

3124434R1

NUT

NUT with gasket

1шт.

8

3124432R1

DUST VALVE

unloader

1шт.
